| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.VAQ220S1-002 |
| الـ MOQ: | Negotiation |
| السعر: | USD 10-100 /set |
| تفاصيل التعبئة: | Carton, Wooden Case |
| شروط الدفع: | T/T,L/C, Credit Card |

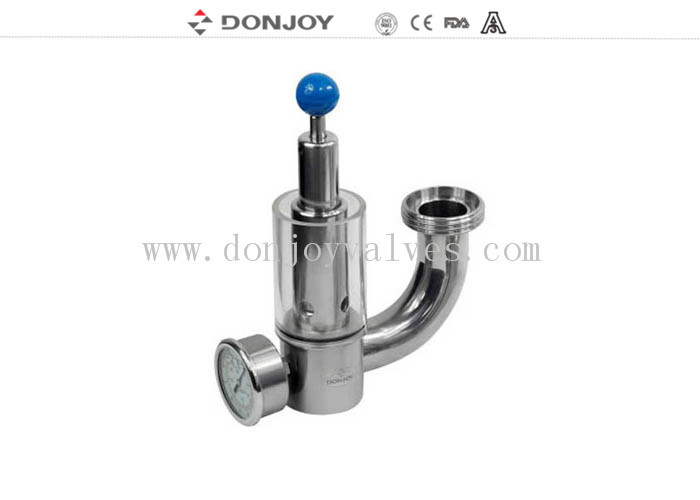

tSanitary Exhaust Safety pressure release valve with Glass with pressure guage
Quick Detail:
Exhaust Valve, SANITARY VALVES
Type: Glass Type, Thread, Clamp, pressure guage.
Specification
|
Product Name: |
Sanitary Exhaust Safety pressure release valve with Glass with pressure guage |
|
Valve Body Material: |
SS304 or SS316L |
|
Seal Material: |
EPDM,NBR,FPM |
|
Max.Working Pressure: |
8Bar 116PSI |
|
Max. Working Temperature: |
120 degree C |
|
Availably size: |
1/2",3/4" |
|
Availably connection: |
Flange,Clamp,Welded |
|
Availably standard: |
DIN,INCH,IDF,3A,SMS |
|
Operate: |
Pneumatic ,Maual |
|
Certificate: |
FDA,CE |
Applications:
1. Safety valve is used to protecting pipe,pump from over pressure
2. Sanitary and safe design is to prevent operation danger and equipments break down due to pressure
3. With sanitary design stainless steel, the valvei s best choicefor pretection equipments in diary ,food, beverage, pharmacy and fine chemical industries.
Operating Principle
1. Through the spring to adjustable the pressure.
2. When the pressure in the pipe exceeds to the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure.
Drawing of valve
