| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.VJZ140Q2 |
| الـ MOQ: | Negotiation |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | carton box |
| شروط الدفع: | T/T, LC, Credit Card |

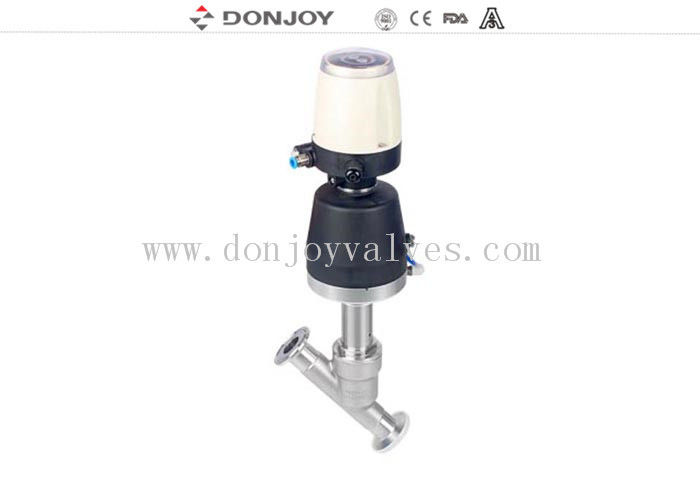

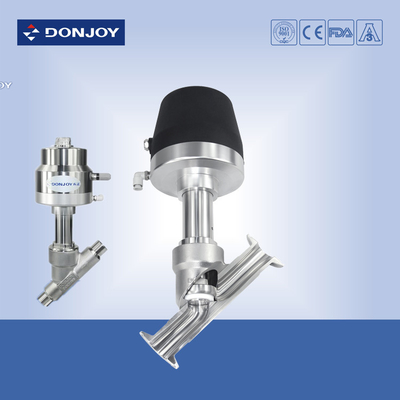

Donjoy 2" pneumatic Steam Angle Seat Valve with Contol head
Detail:
Angle Seat Valve
Connection: Clamped, Thread, Welding,Flange
Standard: DIN,3A,SMS,ISO,IDF, RJT..
Configuration features(with MINI- C-TOP control unit)
1. Position feedback,Can be viewed on(Green) and off(Red)
2. Built-in Solenoid valve
3. Press button design (convenient to calibrate)
4. Press with PLC system to automaticauy control
5. Power:DC 24V
specifications:
| Product Name: | 2" Plastic Pnuematic Angle Seat Valve,Regulation valve,Steam Valve ,BPE Clamp Connection |
| Valve Body Material: | CF8M/316L,CF8/304 |
| Seal Material: | EPDM |
| Working Pressure: | 8 Bar, 10Bar(option). |
| Max. Working Temperature: | 120 degree ,180Degree(Option) |
| Availably size: | DN10-DN100,1/2"-4" |
| Availably connection: | Thread,Weld,Clamp,BSP/BSP/NPT |
| Operate: | Pneumatic ,Manual, Control Head |
Operation Options for Seat Valve
1. Manual: Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel
2. Pnuematice: Plastic and stainless steel actuators
3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor
Applications:
Angle seat valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.
Operationg Principles
1. Seat valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.
2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.
Tag : Steam valve/ Control vaves, Sanitary valves
