| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.VJZ140Q2 |
| الـ MOQ: | Negotiation |
| تفاصيل التعبئة: | carton box |
| شروط الدفع: | T/T, LC, Credit Card |

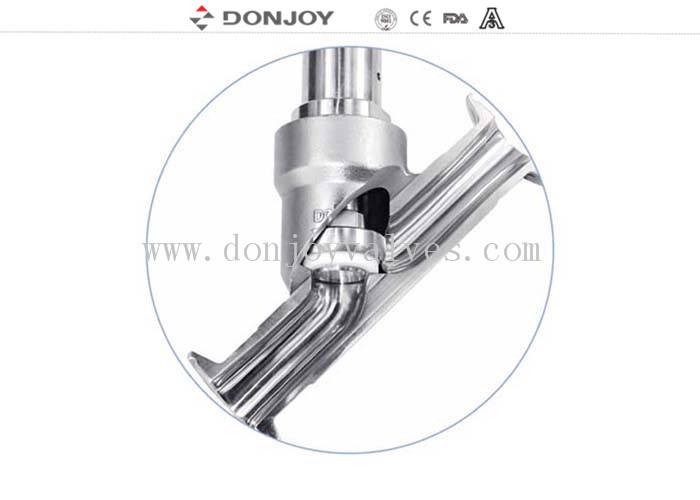

2 Way Pneumatically Actuated Angle Seat Valve with Tri clamp end
Specification
SPECI
| Product Name: | 2 Way Angle Seat Valve |
| Valve Body Material: | CF8/304 or CF8M/316L |
| Seal Material: | EPDM |
| Working Pressure: | 8 Bar, 10Bar(option). |
| Max. Working Temperature: | 120 degree C,180 degree C(option) |
| Availably size: | DN15-DN65 or 0.5" - 2.5" |
| Availably connection: | Thread,Weld,Clamp,BSP/BSP/NPT |
| Handwheel: | Plastic; Stainless steel |
| Operate: | Manual |
| Certificate: | FDA,CE,3A |
Application

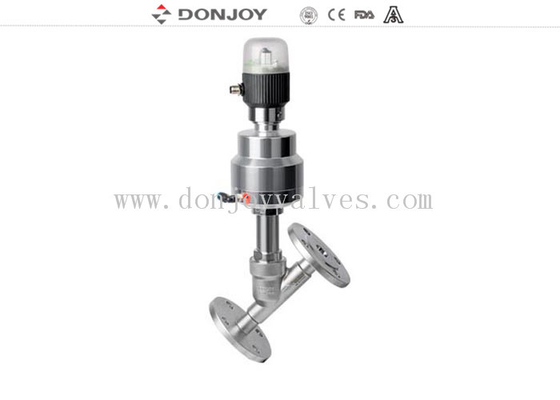

Pneumatic angle seat valve with control unit is a general switch in the automatic control system widely used in printing, dyeing, bleaching, food,washing,chemical, water treatment, pharmacy and other automatic machinery and equipment. It is featured with water hammer protection,noise-free, reliable sealing performance.
Size:1/2"-4",DN10-DN100
Material:CF8,CF8M
Connection : Clamp, weld, thread,BSP/BSTP/NPT,DIN,Inch
Position feedback, Can be viewed on (Green) off (Red)
Built-in Solenoid valve
Valve opens– green light
Valve closes-red light
The design has inching button (manual design)
Power Supply:DC 24V ±10%
Air supply:M5/Φ4
Operating Mode
Manual: plastic handwheel, stainless steel wheel,fine-turing hand wheel
Pneumatic: Plastic and stainless steel actuators
Pneumatic control mode: valve positioner,process controller , the control unit, position sensor.
Confilguration festures
Position feedback, can be viewed on (Green) and off (Red)
Bulit-in solenoid valve
Press button design(convenient to calibrate)
Press with PLC system
Drawing of Angle seat Valve
Curve for the angle seat valve
Tag :Shut valve, Angle seat vale, Control Valve
