| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.ERK211 |
| الـ MOQ: | Negotiation |
| السعر: | USD54-USD500PC |
| تفاصيل التعبئة: | Carton, Wooden Case |
| شروط الدفع: | T/T,L/C, Credit Card |

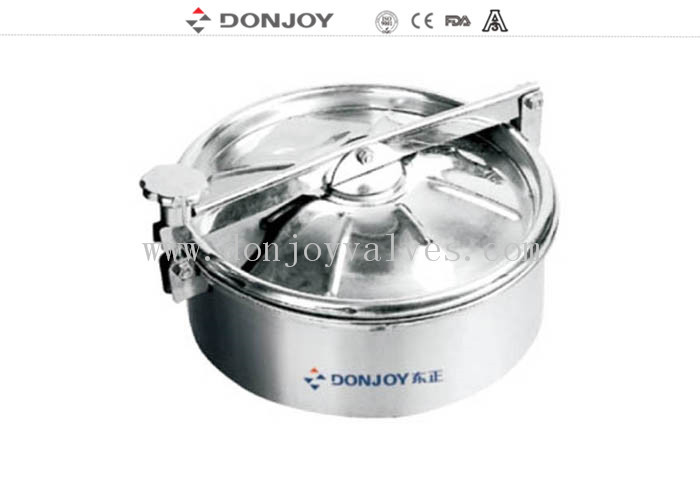

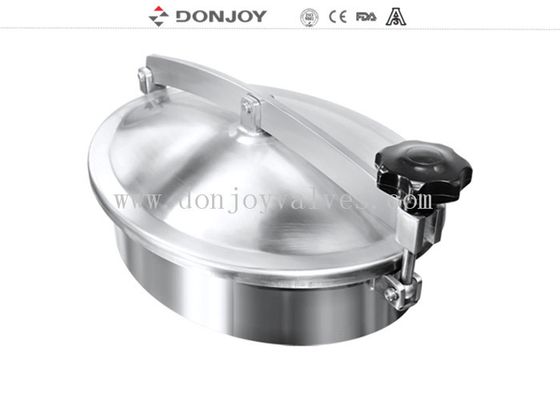

400mm Non-pressure Round Tank Manhole Cover Mirror / Matt Polished with stainless steel handle
Drawing
Tag:
Stainless steel vessels Manhole Cover.
Tank top Cover, Tank side Cover
Quick Detail
|
Name: Tank Manhole Cover, Stainless Steel |
Height: 100mm,150mm, 120mm or customer requirement |
|
Type: Round without Pressure |
Polished: Mirror, Mattr, |
|
Size: φ150,200,250,300,350,400,450,500,600 etc |
Place of Origin: Wenzhou,China |
Thickness: 2.0mm,2.5mm,3.0mm
Materials: 1.4301/1.4404,SUS304/SUS316L,
OEM&ODM service: Available
Handle: Plastic, Stainless Steel
Application:
Non-pressure type manhole cover is widely used in food, wine-producing, beverage, and pharmacy industries and so on. Apply to all kinds of atmospheric container or tank to prevent the leakage. And it is Installation on the top of the vessel, tank etc.
Specification
|
Product Name: |
Tank non-pressure manhole cover |
|
Material: |
AISI304, AISI316L |
|
Size: |
200,220,300,350,400,430,450,500,600,800 |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded, Flange |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request |
Working Principle:
Non-pressure type manhole cover is joined together to the tank by the hinge, it also can let non-pressure type manhole cover free open and close tightness at the range of 120 degrees by the handle, so it can be easy for the serviceman to check and to operate.
Design standard:
The difference between non-pressure and pressure type manhole cover is the former can only use under normal pressure, so it generally has only one fixed handwheel device, but the sealing is good enough.
Product display
