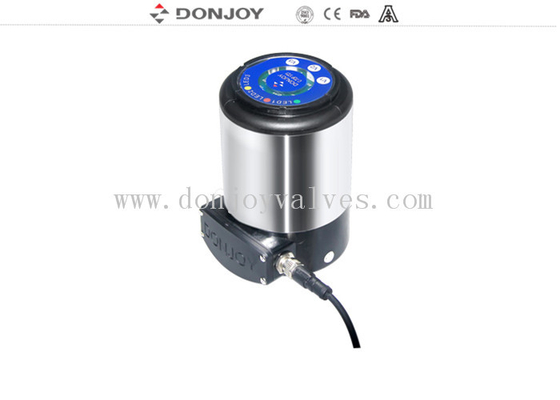

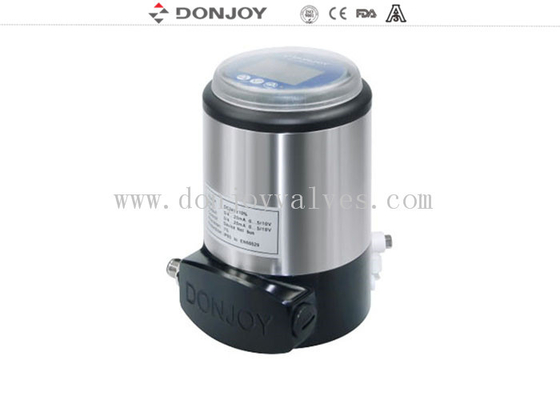

Sanitary food stainless steel equipment controllers C-TOP pneumatic control valve open and close
SPECIFICATION
|
Product Name |
Controller |
|
Medium |
Lubricated compressed air, inert gases |
|
Max. Working temperature |
70℃ |
|
Working pressure |
1.5 bar - 7 bar (22PSI to 102PSI) |
|
Connector |
G1/8" |
|
Level of protection |
IP67 |
|
Air flow |
200NL |
|
Stroke |
Min. 3mm; Max. 70mm |
|
Max. C - TOP units |
31 C - TOP units |
|
Connecting cable |
2m |
|
AS-I BUS |
max. length: 1m |
|
Function |
For controlling valve position |
|
Feature |
Inductive position sensor |
Model choosing table
| Controller C-TOP 1421/1721 /222a(Recommend version) | |||
|
Input control | Recommend actuator | Output signal |
| 1 solenoid valve | single acting pneumatic actuator | PNP 2 postiion 4-20mA | |
| 2 solenoid valves | Double acting pneumatic actuator | PNP 2 position 4-20mA | |
| 3 solenoid valves | for mixing proof valve | PNP 3 position 4-20mA | |
| 3 Solenoid valves | for mixing-proof valve | PNP 4 position (including 1pc external sensor) 4-20mA | |
| Controller C-TOP 1421/1721/2221 (Bus protocol version AS-I BUS-V3.0) | |||
|
Input control | Recommend actuator | Output signal |
| 1 solenoid valve | single acting pneumatic actuator | PNP 2 postiion 4-20mA | |
| 2 solenoid valves | Double acting pneumatic actuator | PNP 2 position 4-20mA | |
| 3 solenoid valves | for mixing proof valve | PNP 3 position 4-20mA | |
Applications
C - TOP is a pneumatic controller that is designed to ensure an optimum control valve.
It is compatible with most PLC automatic system. In the industry of food, beverage, pharmacy,

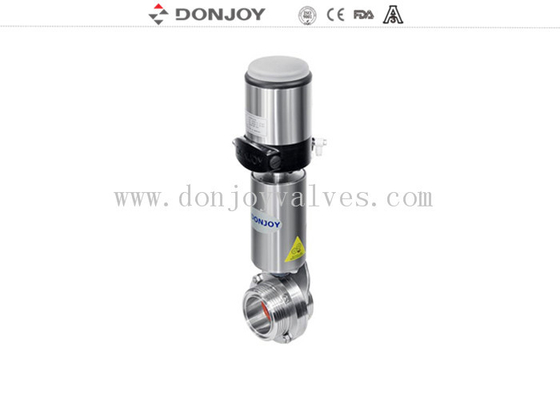

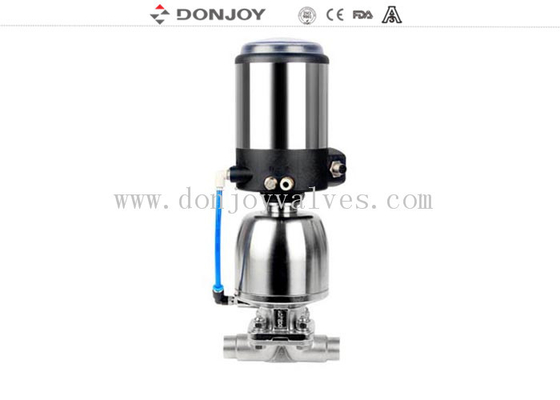

it could be installed to all kinds of pneumatic valves such as mixture proof valve, butterfly valve, ball valve, diaphragm valve, reversing valve and globe valve etc.
Design and features
Connecting sensors with solenoid valve ( actuator ) easily, fastly and economically by AS - I BUS mastering.
Since cables are largely decreased, installation and start up become more convenient.
Besides, start time is shortened, and some hidden troubles in the installation can be avoided.Parts are the same as standard C - TOP. The only changed part is the built - in card,. AS - I insulation replacement connector and the cable connector itself.
C - TOP Valve control unit - - 2014
Displacement regulating version
|
Model |
Sensor |
Solenoid valve |
Power |
Connection |
Remarks |
|
1421-05-S1-V1 |
1 |
1 |
DC. 24V |
Cable connection |
Single acting |
|
1421-05-S1-V2 |
1 |
2 |
DC. 24V |
Cable connection |
Double acting |
|
1421-05-S1-V3 |
1 |
3 |
DC. 24V |
Cable connection |
Three effects (mixture proof valve) |
|
1421-05-S1-V1-AS |
1 |
1 |
DC. 24V |
AS-I BUS |
Single acting |
|
1421-05-S1-V2-AS |
1 |
2 |
DC. 24V |
AS-I BUS |
Double acting |
|
1421-05-S1-V3-AS |
1 |
3 |
DC. 24V |
AS-I BUS |
Three effects (mixture proof valve) |
Mechanical regulating version
|
Model |
Sensor |
Solenoid valve |
Power |
Connection |
Remarks |
|
1421-05-S1-V1-M |
1 |
1 |
DC. 24V |
Cable connection |
Single acting |
|
1421-05-S1-V1-M |
2 |
1 |
DC. 24V |
Cable connection |
Single acting |
|
1421-05-S1-V2-M |
2 |
2 |
DC. 24V |
Cable connection |
Double acting |
|
1421-05-S1-V3-M |
3 |
3 |
DC. 24V |
Cable connection |
Three effects (mixture proof valve) |
|
1421-05-S1-V1-AS-M |
1 |
1 |
DC. 24V |
AS-I BUS |
Single acting |
|
1421-05-S1-V1-AS-M |
2 |
1 |
DC. 24V |
AS-I BUS |
Single acting |
|
1421-05-S1-V2-AS-M |
2 |
2 |
DC. 24V |
AS-I BUS |
Double acting |
|
1421-05-S1-V3-AS-M |
3 |
3 |
DC. 24V |
AS-I BUS |
Three effects (mixture proof valve) |
