| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.ERK111 |
| الـ MOQ: | Negotiation |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | Carton, Wooden Case |
| شروط الدفع: | T/T,L/C, Credit Card |

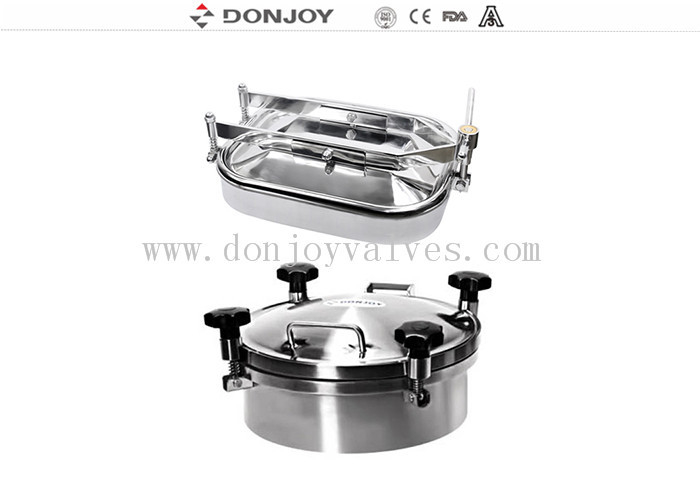

Stainless 304 Pressure Round Manway with Plastic Wheels(200mm OD)
Quick Detail
Manhole Cover,Round Manway
Demission:DN200*100mm,220*100mm,300*100mm,450*150mm,500*120mm,600*140mm,800*140mm, Or customized
Height:100mm,120mm,140mm,160mm,180mm,200mm
Type: Round pressure
Handle: Plastic wheels, Stainless Steel wheel
Specifications
|
Product Name: |
Tank circle pressure manway |
|
Material: |
AISI304, AISI316L |
|
Size: |
102-800 |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Drawing
| Size | H | D1 | D2 |
| 200 | 100 | 194 | 200 |
| 220 | 100 | 214 | 220 |
| 300 | 100 | 294 |
300 |
| 350 | 100 | 344 | 350 |
| 400 | 100 | 394 | 400 |
| 430 | 100 | 424 | 430 |
| 450 | 100 | 444 | 450 |
| 500 | 100 | 494 | 500 |
| 600 | 100 | 594 | 600 |
Unit: mm
| Size | H | T | D2 |
| 400 | 100 | 4 | 400 |
| 430 | 100 | 4 | 430 |
| 450 | 100 | 4 | 450 |
| 500 | 100 | 4 | 500 |
| 600 | 100 | 5 | 600 |
| 800 | 100 | 6 | 800 |
| 900 | 100 | 6 | 900 |
Technical Information:
Gasket: EPDM,NBR,SILICONE,FPM in accordance with FDA177.1600
Working Pressure:2-5Bar
Fineness: inner and outer fineness of mirror Ra≤0.8μm, inner and outer mechanical polish and electrical polish Ra 0.2μm, the external surface can be gross polished or sub-gross polished.
Application:dairy , food , chemical ,beverage ,pharmaceuticals ,water treatment ,beer etc .It is used as cap on the top of the vessel,tank etc
Question:
1. What about the delivery time of the manhole cover
Answer: Normally Takes about 7-10 days
2.How about the Surface
Answer: Our standard with mirror inside and outside satin polish side.If you have requirements in Ra,please let me know it.
3. The height of the square Manhole:
Answer: Our standard with 65mm Height, 8mm thickness. Or if you have requirements, we also can be according it to custom.
4.Can you do as a specific size and print our logo on it?
Answer: Yes, We support specifications customize and personalized customization If you need more information or catalogs,please contact us freely.
Tag: pressure manhole cover. 5Bar pressure manway, 3Bar pressure tank cover
