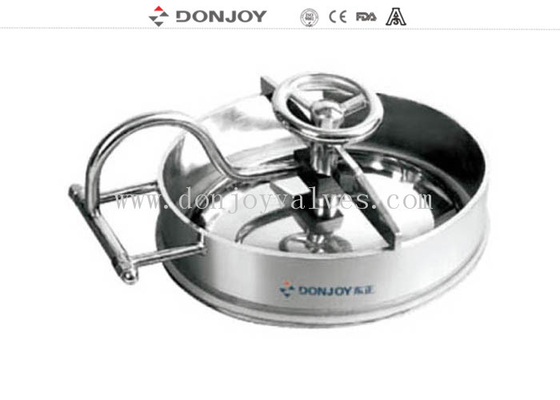

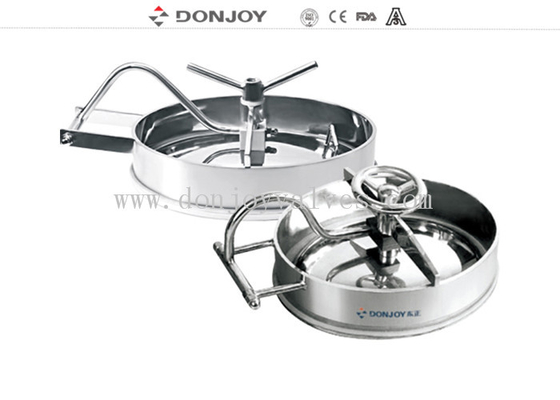

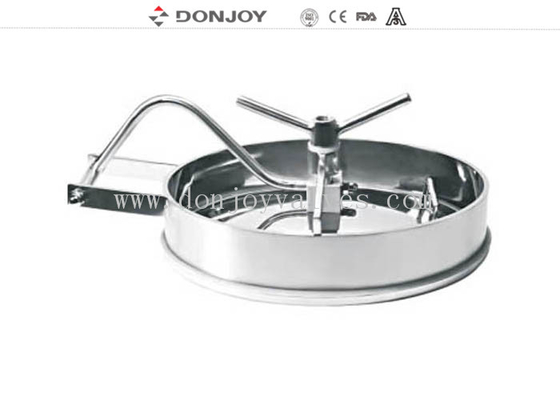

Stainless Steel 316 Elliptical Pressure Tank Manway with Stainless steel Wheel Inward Opening Manhole Cover
Quick Detail
Manhole Cover,Elliptical Manway
Demission:435mm*335mm,530mm*430mm,535mm*435mm,635mm*525mm
Height:75-80mm,90-100mm,80-90mm,100-120mm,130-160mm
Type: Elliptical man hole cover
Handle: Stainless Steel wheel
Specifications
|
Product Name: |
Tank elliptical pressure manway |
|
Material: |
AISI304, AISI316L |
|
Size: |
435mm*335mm,530mm*430mm,535mm*435mm,635mm*525mm |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Drawing
| Size | H | L1 | L2 | T |
| 435*335 | 75 | 435 | 335 | 8 |
| 530*430 | 100 | 530 | 430 | 10 |
| 635*525 | 160 | 635 |
525 |
10 |
Unit: mm
| Size | Tolerance |
| 200-350 | ±1.2 |
| 400-600 | ±2 |
Unit :mm
Technical Information:
Gasket: EPDM,NBR,SILICONE,FPM in accordance with FDA177.1600
Working Pressure:2-5Bar
Fineness: inner and outer fineness of mirror Ra≤0.8μm, inner and outer mechanical polish and electrical polish Ra 0.2μm, the external surface can be gross polished or sub-gross polished.
Application:dairy , food , chemical ,beverage ,pharmaceuticals ,water treatment ,beer etc .It is used as cap on the top of the vessel,tank etc
Manhole cover optional
1.Non-pressure round manway
2.Round pressure manway
3.Square manway
4.Elliptical manhole cover
5.High pressure manhole cover
6.Pressure manhole cover with sight glass
7.Glass pressure manway
8.Mini type square manway
Question:
1. What about the delivery time of the manhole cover
Answer: Normally Takes about 7-10 days
2.How about the Surface
Answer: Our standard with mirror inside and outside satin polish side.If you have requirements in Ra,please let me know it.
3. The height of the square Manhole:
Answer: Our standard with 65mm Height, 8mm thickness. Or if you have requirements, we also can be according it to custom.
4.Can you do as a specific size and print our logo on it?
Answer: Yes, We support specifications customize and personalized customization If you need more information or catalogs,please contact us freely.
Tag: pressure manhole cover. 5Bar pressure manway, 3Bar pressure tank cover
