| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.ERK111 |
| الـ MOQ: | Negotiation |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | Carton, Wooden Case |
| شروط الدفع: | T/T,L/C, Credit Card |

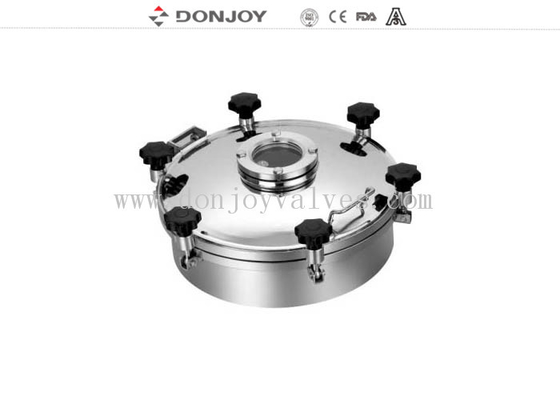

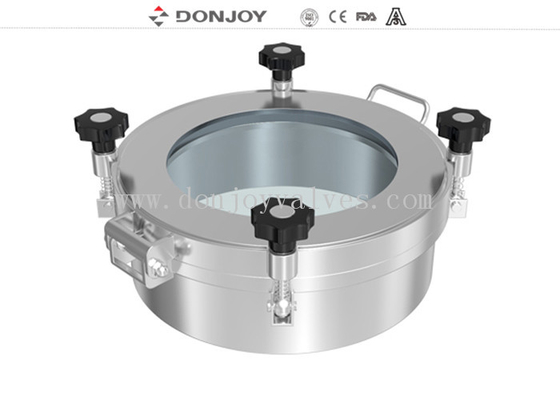

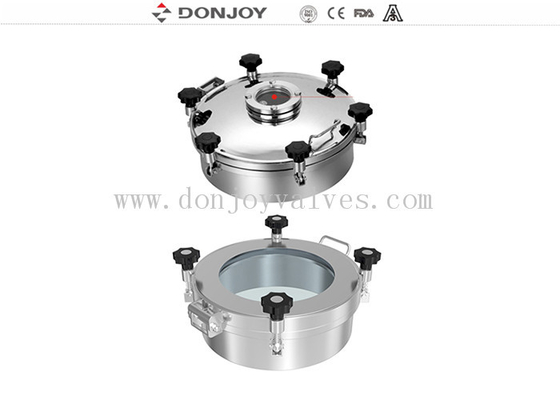

Φ600mm Sanitary grade tank manway stainless steel circle manhole cover with sight glass
Quick Detail
Manhole Cover,Round Manway
Demission:DN200*100mm,220*100mm,300*100mm,450*150mm,500*120mm,600*140mm,800*140mm, Or customized
Height:100mm,120mm,140mm,160mm,180mm,200mm
Type: Round pressure
Handle: Plastic wheels, Stainless Steel wheel
Specifications
|
Product Name: |
Tank circle pressure manway |
|
Material: |
AISI304, AISI316L |
|
Size: |
102-800 |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Drawing
| Size | H | D1 | D2 |
| 200 | 100 | 194 | 200 |
| 220 | 100 | 214 | 220 |
| 300 | 100 | 294 |
300 |
| 350 | 100 | 344 | 350 |
| 400 | 100 | 394 | 400 |
| 430 | 100 | 424 | 430 |
| 450 | 100 | 444 | 450 |
| 500 | 100 | 494 | 500 |
| 600 | 100 | 594 | 600 |
Unit: mm
| Size | H | T | D2 |
| 400 | 100 | 4 | 400 |
| 430 | 100 | 4 | 430 |
| 450 | 100 | 4 | 450 |
| 500 | 100 | 4 | 500 |
| 600 | 100 | 5 | 600 |
| 800 | 100 | 6 | 800 |
| 900 | 100 | 6 | 900 |
Technical Information:
Gasket: EPDM,NBR,SILICONE,FPM in accordance with FDA177.1600
Working Pressure:2-5Bar
Fineness: inner and outer fineness of mirror Ra≤0.8μm, inner and outer mechanical polish and electrical polish Ra 0.2μm, the external surface can be gross polished or sub-gross polished.
Application:dairy , food , chemical ,beverage ,pharmaceuticals ,water treatment ,beer etc .It is used as cap on the top of the vessel,tank etc
Outward opening manhole cover
Manhole cover optional
1.Glass pressure manhole cover
2.Non pressure round manhole cover
3.Pressure man hole cover
4.High pressure manhole cover
5.Elliptical man hole cover
6.Square manhole cover
7.Rectangular manway
8.Mini type manhole cover
Question:
1. What about the delivery time of the manhole cover
Answer: Normally Takes about 7-10 days
2.How about the Surface
Answer: Our standard with mirror inside and outside satin polish side.If you have requirements in Ra,please let me know it.
3. The height of the square Manhole:
Answer: Our standard with 65mm Height, 8mm thickness. Or if you have requirements, we also can be according it to custom.
4.Can you do as a specific size and print our logo on it?
Answer: Yes, We support specifications customize and personalized customization If you need more information or catalogs,please contact us freely.
Tag: pressure manhole cover. 5Bar pressure manway, 3Bar pressure tank cover
