| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.VQD100Q2 |
| الـ MOQ: | Negotiation |
| تفاصيل التعبئة: | carton box |
| شروط الدفع: | T/T, LC, Credit Card |

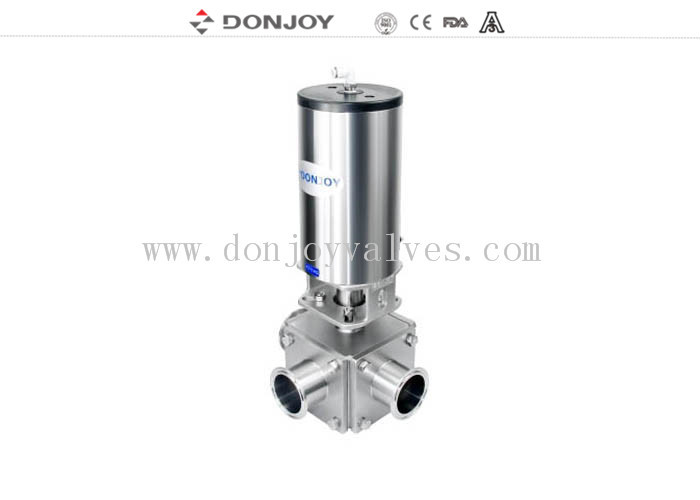

Stainless steel Sanitary Three way non retention Ball Valve with L port
Detail:
Manual Ball Valve, Pneumatica ball valve, C-top Pneumatica ball valve,Electrc ball valve, IL-Top type Ball vale, Proportinonal control Ball valve, T type/L type
Connection: Clamped, Thread, Welding etc
Certificate: PED, 97/23EC
Specification

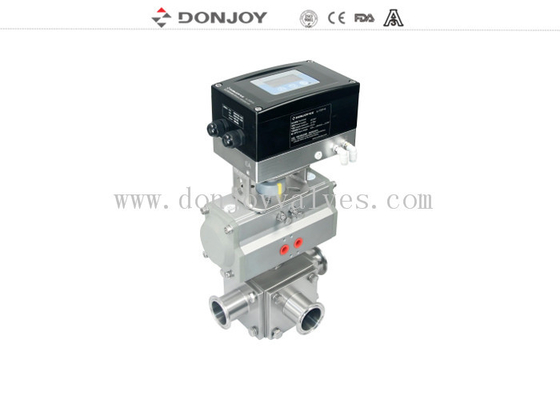

| Product Name: | Sanitary Aluminum Pneumatic direct way ball valve, L type,PTFE Seat |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | PTFE |
| Max. Working Pressure: | 10Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | DN10-DN100 or 1/2" - 4" |
| Availably connection: | Weld,Clamp,Thread |
| Ball | |
| Tport , L port | |
| Operated: | Manual,Pneumatic,Electric,control Head |
| Certificate: | PED, 97/23EC |
Applications:
The hygienic design of the valve is widely used in the field of food processing, beverage, fruit juices, wine, biopharmaceutical and very flexible body combinations for example, L-Port or T-Port can be interchangeable on-site inlet, outlet to be any combination of change can guarantee dead angle, no retention.
Design and Features
Free of maintenances
Compact and portable
Small operating torque
Gasket complies with PTFE FDA 177.2600
Hand lever can be installed on the side of valve body, no matter of the flow direction.
Connection ends: thread, clamp, weld, flange, DIN, SMS,RJT,FIL
It can be installed with pneumatic and electric actuators.
The part contacted with media is AISI 304/316L
Other parts AISI 304
Certifications: PED, 97/23EC
Drawing
