| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.VQD100S1 |
| الـ MOQ: | Negotiation |
| تفاصيل التعبئة: | carton box |
| شروط الدفع: | T/T, LC, Credit Card |
3 INCH 1.4404 Sanitary Ball Valve manual butterfly type with pull
Manual Ball Valve,CIP Cleaning Ball, Pneumatica Butterly type ball valve, C-top Pneumatica Butterly type ball valve,Electrc ball valve, IL-Top type Ball vale, Proportinonal control Ball valve
Materials:AISI304/316L
Gasket: EPDM,
Seal:PTFE
Connection: Clamped, Thread, Welding
Standard: DIN,3A,SMS,ISO,IDF, RJT..
Polished: Ra0.8um
Outside Polished: CNC Machining
Specification

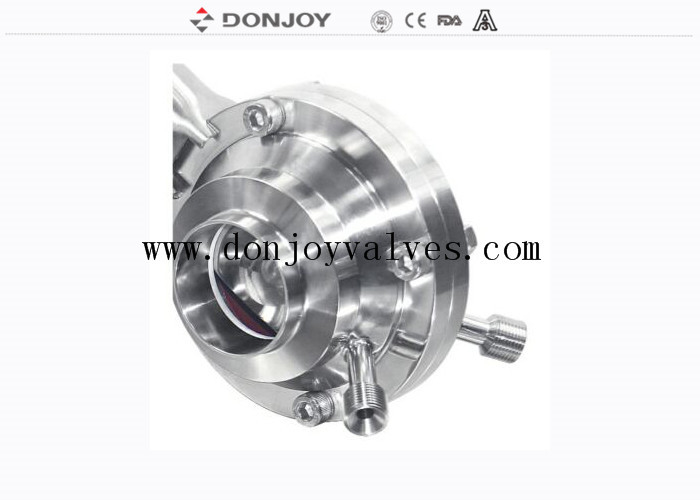

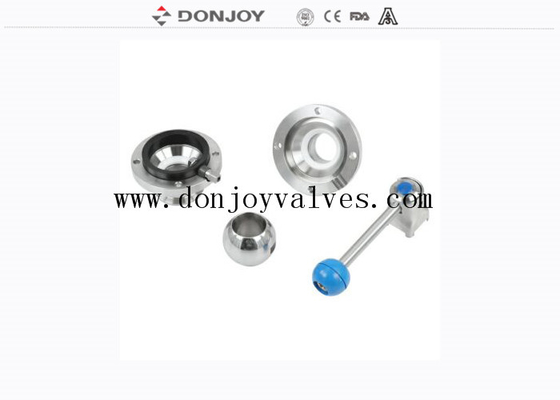

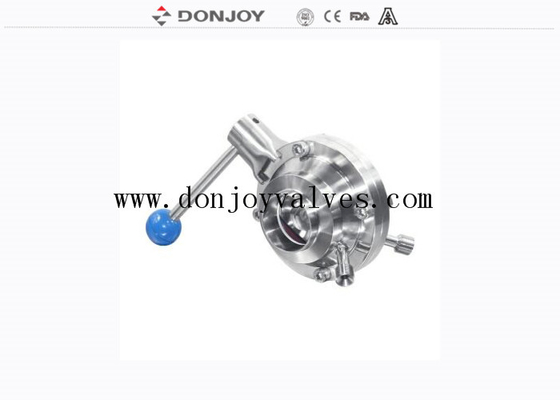

| Product Name: | DN50 1.4301 Sanitary Ball Valve manual butterfly type with CIP port |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | PTFE |
| Max. Working Pressure: | 10Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | DN25-DN100 or 1" - 4" |
| Availably connection: | Weld,Clamp,Thread, Flange |
| Availably standard: | DIN,SMS,3A |
| Ball Type: | Directly |
| Operated: | Manual,Pneumatic,Electric,control Head |
| Certificate: | FDA,CE,3A,ISO |
Applications:
Application :The butterfly-Type ball valve is installed in any to pipeline and enquipments for to controling. It is specially used in brewing industry.
Operating Principles
1. Free Maintenance
2.Portable and compact
3.Small Torquemoment
4.Drainble
5.Gasket complies with FDA 177.2600
6.Handle can be installed on the side of the valve body, no matter of the flow direction
7.Valve body can be replaced in any connections, And the length will not change.
Technical Specification
1.Max Temperature:121°C ,EPDM
2.Pressure: 10Bar
Tag : Ball valve, Directly ball valve, Regulating valve
