| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | ASEPTIC MODEL |
| الـ MOQ: | Negotiation |
| تفاصيل التعبئة: | WOODEN CASE, CARTONS |
| شروط الدفع: | T/T,L/C, Credit Card |

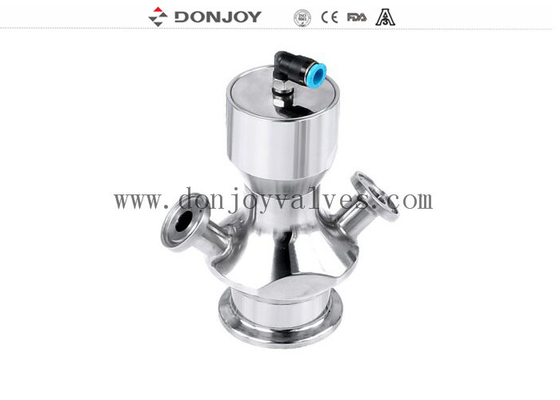

SS316L Pneumtic Aspetic Sampling Valve with Clamp Connection for sampling
Quick Detail
Sampling Valve
Size:12.7mm,1/2"
Type: Pnuematic

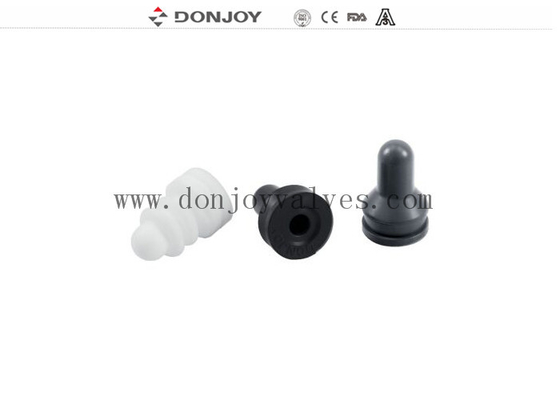

Gasket: EPDM,PTFE
Working Pressure:6Bar
Connection: Thread, pipe welding, tank welding, clamp...
Sample port selection: Hoses, welding, clamp, thread, Boss end.
Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm
Specification
|
Product Name: |
Pneumtic Aspetic Sampling Valve with Clamp Connection,SS316L, |
|
Material: |
AISI316L |
|
Size: |
1/2" |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded,Clamped, Thread... |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Extracting Sample Valves Biological pharmacy sanitary grade aseptic valve
The aseptic sampling valve is designed for sterilization before and after each sampling.
Open :Sampling-the manual valve is opened by rotating the handle (adjustable value) or by activating the
lever (on/off valve), the stem and the membrance are then retracted, allow liquid to pass.
Closed: Sterilizing-the built-in spring closes the valve and keeps the channel open between the hoses though reverse process in order to sterilize.If using by steam, a small pressure relief valve (optional) on the outlet is recommended.
Drawing
Valve body with various configurations
Tag : Sampling valve, Donjoy Valve, Sanitary valves
