| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.EGL510 |
| الـ MOQ: | Negotiation |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | Carton, Wooden Case |
| شروط الدفع: | T/T,L/C, Credit Card |

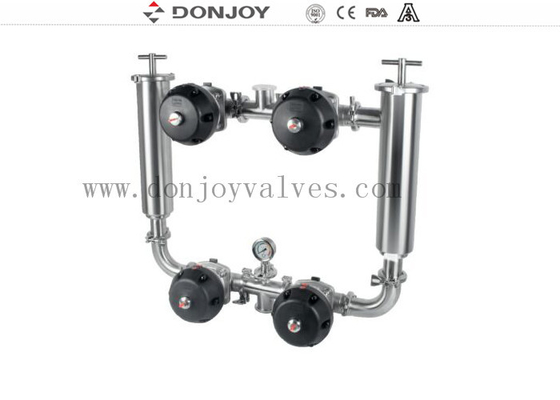

Donjoy Sanitary Food Grade Beverage Duplex Filter with Diaphragm valve control
Quick Detail
Sanitary filter/Strainer, double filter
Guage pressure: With without is according customer requirement
Connection: Clamped, Thread, Welded.
Size:1.5"-4"
Type: Y type, Angle Type,Inline
Max pressure: 10Bar,145PIS
Working tempressure: -10℃ to 120 ℃(EPDM), +140℃ (SIP,30 Minites)
14℉ to 248℉
Gasket:EPDM( FDA 177.2600)
Screen:30-300meshes
Screen Hole:0.5mm-2mm
Specification
|
Product Name: |
Duplex Filter, Double strainer combination Angle Type with the pressure guage |
|
Material: |
AISI304, AISI316L |
|
Size: |
1-4" |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded, Threaded, Clamped |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Application:
this duplex filters is applied to eliminate the invisible solids from dairy, beverage and plulps. So as to purify the liquids. The two filters can run alternatively and continually. Becasue they can be replace or cleaned without powering off.
Metal Mesh
| Mesh | B(MM) | Useful Surface(%) |
| 30 | 0.55 | 48 |
| 40 | 0.4 | 46 |
| 60 | 0.3 | 52.6 |
| 80 | 0.2 | 42 |
| 100 | 0.15 | 36.2 |
| 165 | 0.1 | 45.4 |
Perforate Plate
| A(MM) | Useful Surface(%) |
| 0.5 | 15 |
| 1 | 28 |
| 1.5 | 33 |
| 2 | 30 |
| 3 | 33 |
| 5 | 46 |
Advantages:
Duplex Filter (Angle Type)

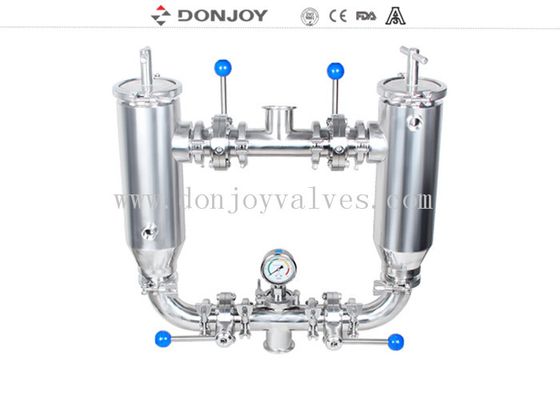

Duplex Filter(Straight Type)
A: We are factory.
A: Generally it is 5 days if the goods are in stock. or it is 10 days if the goods are out of stock, it is according to quantity.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippme
Tag : Filter, Strainer, Filter Mesh
