| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.EGL210 |
| الـ MOQ: | Negotiation |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | Carton, Wooden Case |
| شروط الدفع: | T/T,L/C, Credit Card |

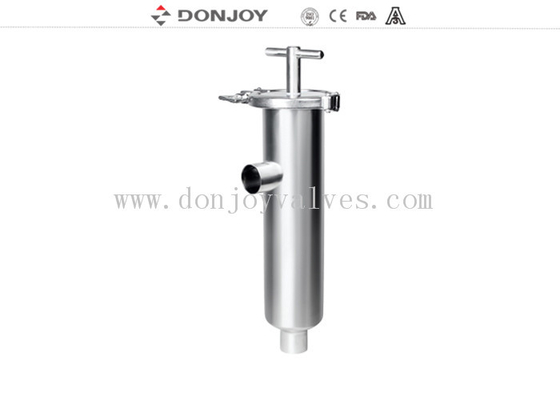

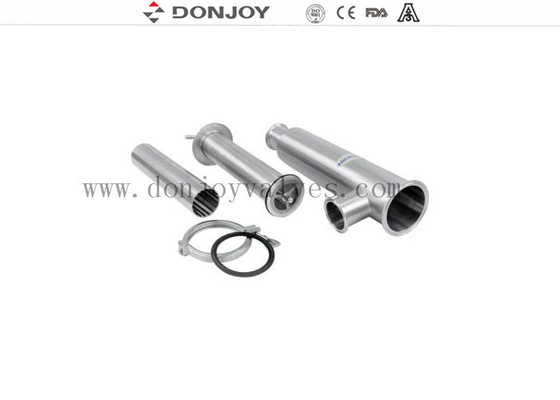

304 sanitary Cylindric Angle Tank pipeline Filter for Food&Beverage Industry
Quick Detail
Sanitary filter/Strainer, Food grade Filter, Juice Filter
1. Materials: SUS304/SUS316L, 1.4301/1.4404, AISI304/AISI316L
2. Size:1"-4"
3. Screen:30-300meshes
4. Screen Hole:0.5mm-2mm
5. Surface: Inside RA≤0.8um,Outside: Mirror Polished
6. Working tempressure: -10℃ to 120 ℃(EPDM), +140℃ (SIP,30 Minites)
14℉ to 248℉
7. Max pressure: 10Bar,145PIS
8. Connection: Clamped, Welded, Thread
9.Standard: DIN,3A, RJT,SMS,ISO,IDF
10. Gasket: EPDM ( FDA 177.2600)
Specification
|
Product Name: |
304 sanitary Cylindric Angle Tank pipeline Filter for Food&Beverage Industry |
|
Material: |
AISI304, AISI316L |
|
Size: |
1-4" |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded, Threaded, Clamped |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Operating Principles:
Feature:
Sanitary Filters provide reliable means of removing fine particles from liquids; filtering media must be removed and disposed periodically. Strainers, on the other hand, actually are coarse filters that remove larger particles; the straining mesh can be reused after cleaning. An inline sanitary filter that filters down to 0.023 micron with a 99.99% efficiency. Use it anywhere you need to keep something sanitary.
Advantage:
hygiene level filter sleeve unique structure, make each sleeve no dead Angle, both internal and external surface can be completely unpick and wash, easy to operate.
Mesh Selection Table
Metal Mesh
| Mesh | B(MM) | Useful Surface(%) |
| 30 | 0.55 | 48 |
| 40 | 0.4 | 46 |
| 60 | 0.3 | 52.6 |
| 80 | 0.2 | 42 |
| 100 | 0.15 | 36.2 |
| 165 | 0.1 | 45.4 |
Perforate Plate
| A(MM) | Useful Surface(%) |
| 0.5 | 15 |
| 1 | 28 |
| 1.5 | 33 |
| 2 | 30 |
| 3 | 33 |
| 5 | 46 |
Draing of Filter
Packing details:
Each with wrap then put in caton. If shipped by sea will packed in the wooden case
Shipping details:
Uaually within 7 days after receiving T/T down payment
Term of conditions: EXW PRICE, FOB, CIF....
Tag : Strainer, Filter, Donjoy Sanitary fitler
