| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | CIP-U |
| الـ MOQ: | Negotiation |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | Wooden box |
| شروط الدفع: | T/T, LC, Credit Card |

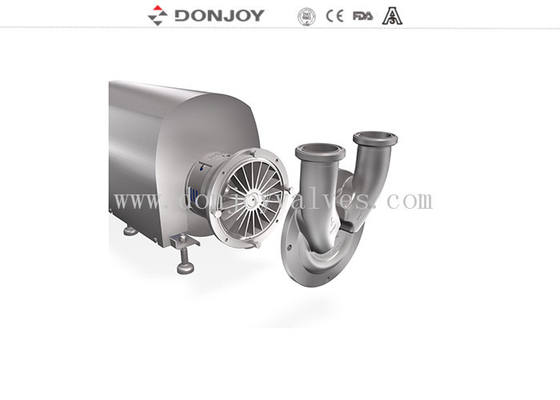

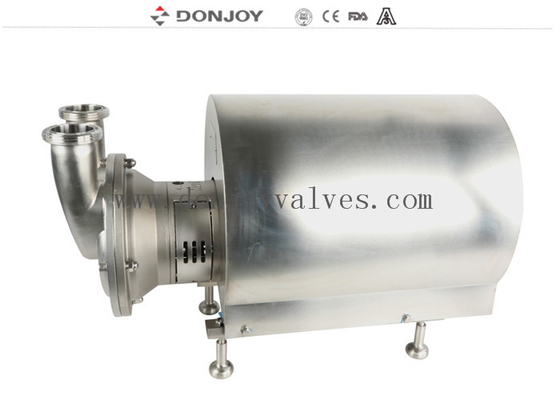

DONJOY Sanitary 316L CIP-U Self Priming CIP Pump for Milk, Dairy, Drink
Description
Options
1. Mechanical seal: C/SIC/EPDM
2. Gasket: viton/NBR
3. Connection: Thread, Clamp, Flange (DIN, SMS, RJT, IDF)
Specification
|
Product Name: |
DONJOY Sanitary 316L CIP-U Self Priming CIP Pump for Milk, Dairy, Drink |
|
Max. Flow: |
35 m³/h |
|
Max. Speed: |
3600 min-1 |
|
Max. Head: |
42H(m) |
|
Max. Working Pressure: |
4.2Bar |
|
Max. Working |
120 °C |
|
Material connecting with other part: |
AISI - 316 / 304 |
|
Energy efficiency of motor |
IEC EN IE2, IE3 |
|
Sealing type: |
Flushed double mechanical seal/single mechanical seal(standard) |
|
Motor power: |
2.2kw,3.0KW,5.5KW,7.5KW,11KW,15KW |
|
Voltage: |
110V, 220V, 380V |
|
Motor: |
ABB/domestic |
|
Motor Frequency: |
50HZ, 60HZ |
|
Surface treatment: |
Inner polished and Sandblast outside |
|
Availably connection: |
Tri-Clamp, Thread, Flange |
|
Availably standard: |
DIN, SMS, 3A, RJT, ISO/IDF |
|
Operated: |
Electic |
|
Low discharge option : |
Low discharge/diaphragm valve/ball valve/butterfly valve |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008 |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Packaging Details: |
Plywood case or customerized. Or as per the request of customers. |
|
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Material
The material connected with other parts: AISI - 316 / 304
The material in other parts: AISI - 304
Gasket (standard): EPDM / (FDA)
Mechanical seal ring (standard): SIC / SIC / EPDM
MECHANICAL SEAL CONFIGURATION
1.C/SIC/EPDM
2.C/SIC/FPM
3.C/SIC/NBR
4.TC/TC/EPDM
5.TC/TC/FPM
6.TC/TC/NBR
Applications
1. This pump is a sanitary lateral design self priming pump, it's suitable for food processing,phamacy and chemical industry.
2. It is specially designed for pumping mterials containing air or gas, and it can also be used for negative sution with prior priming as well as with filtration equipments.
3. it can be sued for wine, oil, syrups, volatile products such as alcohol, and other solvents or with products at temperatures close to boiling point. However, the main use of this pump is for cip recover.
PUMP STRUCTURE
Model selection table
Flow rate and head
Tag : CIP PUMP, Self primg pump, High purity pump
