| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | STUL/R |
| الـ MOQ: | Negotiation |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | Wooden box |
| شروط الدفع: | T/T, LC, Credit Card |

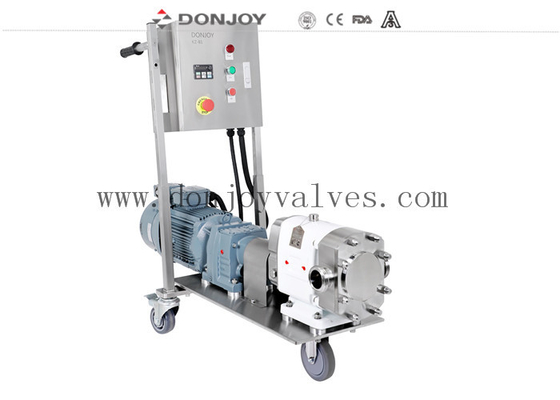

Rotary Lobe Pump with freqency motor and mobile car
Specifications
|
Product Name: |
Lobe pump with motor |
|
Material: |
SS304 / SS316L / 1.4301 / 1.4404 |
|
Seal Material: |
SIC / SIC / EPDM (Standard, FDA approval) |
|
Max. Flow: |
62m3/h / 395 GPM |
|
Max.pressure: |
12bar / 174PSI |
|
Max. working temperature: |
150 C / 302 F |
|
Max. rev: |
1450 rmp |
|
Rotor Type: |
2-leaves, 3-leaves, butterfly, signal butterfly |
|
Mechanical seal: |
SIC / SiC / EPDM(Standard) |
|
Motor power: |
1.5kw, 2.2kw, 3kw….15kw |
|
Feature |
Movable |
|
Voltage: |
220V, 380V, 440V |
|
Motor: |
ABB,SEW, SIEMENS |
|
Surface treatment: |
Inner polished |
|
Available connection: |
Clamp, Thread Butt weld, Flange |
|
Available standard: |
DIN, SMS, 3A, RJT, ISO / IDF |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
| Delivery details: | Normally within 20 days after receiving T/T down payment. |
Design and Features
1. Horizontal TUL,Vetrical TUR
2. Bare-Shaft Consturction
3. Hygienic Design of the attachement of the rotors
4. Sanitary Mechanical Seal, Easy cleaning and maintenace
5. Applied to CIP Cleaning and sic Sterlization
Operation principle
The rotary lobe pump basically consists of two lobe rotors which rotate inside the casing without touching each other. As the rotors rotate, the space between the lobes and the casing is successively filled with the product which is driven to the discharge nozzle displacing a fixed amount of product. The pumped product forms a continous stream due to the adjusted tolerances of the lobes and the pump casing thus ensuring an efficient pumping.
Mechanical seal option
PUMP INLET&OUTLET Selection
Model Selection Table
TUR Drawing
PUMP OPTION
Pump Curve
NNEED MORE INFORMATION, PLEASE CONTACT DONJOY
