| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.EGL310 |
| الـ MOQ: | Negotiation |
| تفاصيل التعبئة: | Carton, Wooden Case |
| شروط الدفع: | T/T,L/C, Credit Card |

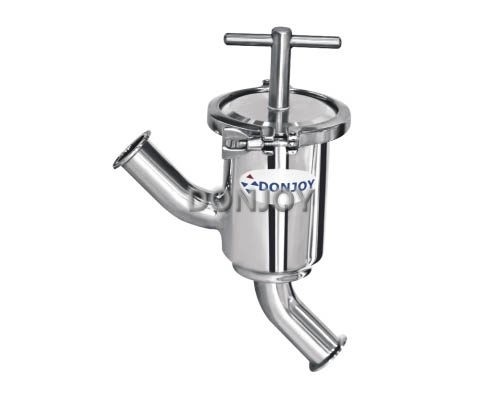

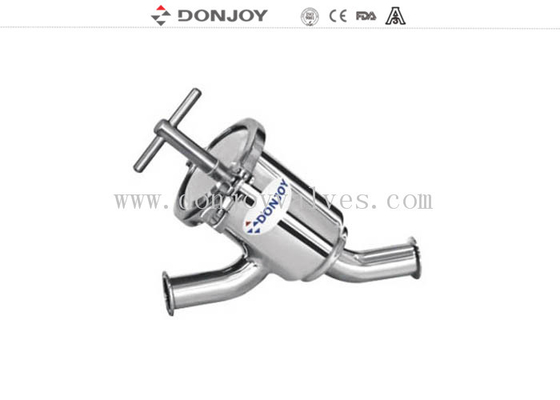

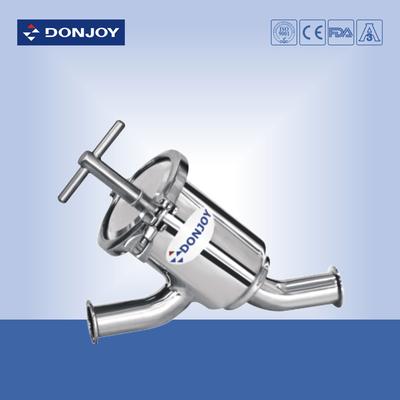

ANSI 304 SS Clamp Y Type Strainer , DN40 Sanitary Y Strainer Stainless Steel
Quick Detail
Sanitary filter/Strainer
Materials: SUS304/SUS316L, 1.4301/1.4404
Size:DN25-DN100
Type: Y type, Angle Type,Inline, Sraight
Connection: Clamped, Welded, Thread
Standard: DIN,3A, RJT,SMS,ISO,IDF
Gasket: Silicone, FPM, NBR
Working tempressure: -10℃ to 120 ℃(EPDM), +140℃ (SIP,30 Minites)
14℉ to 248℉
Max pressure: 10Bar,145PIS
Screen:30-300meshes
Screen Hole:0.5mm-2mm
Surface: Inside RA≤0.8um,Outside: Mirror Polished
Specification
|
Product Name: |
DN40 Sanitary Stainless Steel Y Type Filter, ANSI304 Clamp Y Type Strainer |
|
Material: |
AISI304, AISI316L |
|
Size: |
DN25-DN100 |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded, Threaded, Clamped |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Filter are widely used in the auxiliary service for food processing, cosmetic, chemicals and pharmacy industries. Due to its hygienic design. It is mainly used to filter the particulates that destroy pump and some other equipments.
Metal Mesh
| Mesh | B(MM) | Useful Surface(%) |
| 30 | 0.55 | 48 |
| 40 | 0.4 | 46 |
| 60 | 0.3 | 52.6 |
| 80 | 0.2 | 42 |
| 100 | 0.15 | 36.2 |
| 165 | 0.1 | 45.4 |
Perforate Plate
| A(MM) | Useful Surface(%) |
| 0.5 | 15 |
| 1 | 28 |
| 1.5 | 33 |
| 2 | 30 |
| 3 | 33 |
| 5 | 46 |
If you need more information,Please do not hesitate to contact us.
