| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.EGL411-03/05/07 |
| الـ MOQ: | Negotiation |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | Carton, Wooden Case |
| شروط الدفع: | T/T,L/C, Credit Card |

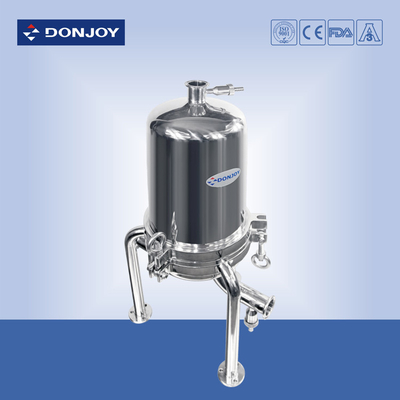

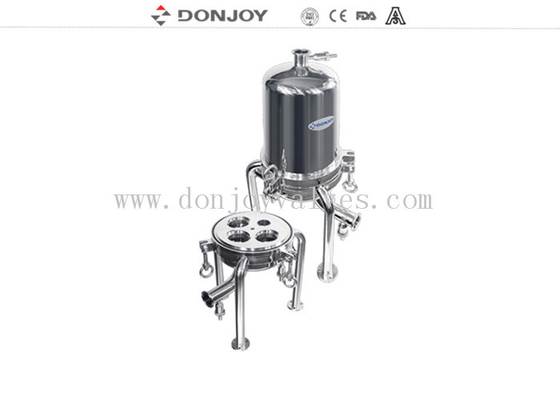

30" Micro Pipeline Filter Stainless Steel Cartridge Housing 0.5T/H - 25T/H
Quick Detail
Micro Filter,Pipeline Filter, Water Filter, Air Filter, Stainless Steel Filter with Sample or Vent Valve
Size:10"-40"
Core: Single Core, 3Core, FIve Core,Seven Core
Water alien filter( For Gas), Water intimate Filter ( For Liquid)
Cartridge Materials: ASTM304/316L
Connection: Clamp,Flange
Capacity:0.5T/H-25T/H
Catridge: PP,PTEF,PE,
Hole Dia:0.1μm,0.22μm,1μm,3μm,5μm,10μm
Filet Seat:10",20",30",40"
Specification
|
Product Name: |
Micro-Filter Base with Smaple/Vent Valve, Three Core filter, 226 Cartridage.SS304 |
|
Material: |
AISI304, AISI316L |
|
Size: |
10"-40" |
|
Finish: |
Ra ≤0.2μm,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded, Threaded, Clamped |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Application:
Water filter housing is specially designed for water treatment and other industrial applications.
Advantage:
The housing body is made of 304SS with a heavy duty clamp on the top to achieve the closure.
The cartridge seat is for double open end PP cartridge with Springs on the top.
The simple design makes the price of cartridge water filter housing very good
Futures:
Small Volume, Light Weight, Large Filter Area, Low Jam, Fast filter speed. No-pollution, good chemical and calorific stabilities.
If you need more information,Please do not hesitate to contact us.
