| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.EGL421-01 |
| الـ MOQ: | Negotiation |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | Carton, Wooden Case |
| شروط الدفع: | T/T,L/C, Credit Card |

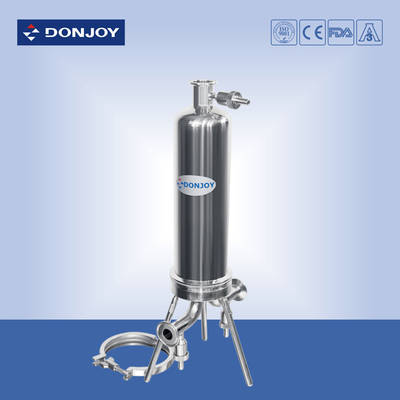

Biogas Pipeline Filter Housing , 316L Stainless Steel Sever Cartridge Air Filter
Quick Detail
Filter Housing, Water Filter, Gas Filter
Size:10"-40"
Inernal Surface Polished: Ra＜0.2um.
Materials Of Housing : SUS304,SUS316L
Connection: Clamp,Flange
Capacity:0.5T/H-25T/H
Catridge: PP,PTEF,PE,
Hole Dia:0.1μm,0.22μm,1μm,3μm,5μm,10μm
Filter Seat:10",20",30",40"
Specification
|
Product Name: |
Micro-Filter Base with Smaple/Vent Valve, Three Core filter, 226 Cartridage.SS304 |
|
Material: |
AISI304, AISI316L |
|
Size: |
10"-40" |
|
Finish: |
Ra ≤0.2μm,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded, Threaded, Clamped |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Description:
These filter housings are manufactured from 304 or 316L stainless steel of the highest quality, available in 1,3,5,8.....45 round configurations and in 10 inch, 20 inch, 30 inch and 40 inch length cartridge, the cartridge end cap could be 226/fin(Code 7), 222/fin(Code 3), DOE(Code 0), etc.
Application:
Stainless steel cartridge filter housings are suitable for a variety of liquid filtration applications(high purity beverage, chemicals and pharmaceuticals, water treatment, alcohol beverage industry, etc).
