| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.ERK131 |
| الـ MOQ: | Negotiation |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | Carton, Wooden Case |
| شروط الدفع: | T/T,L/C, Credit Card |

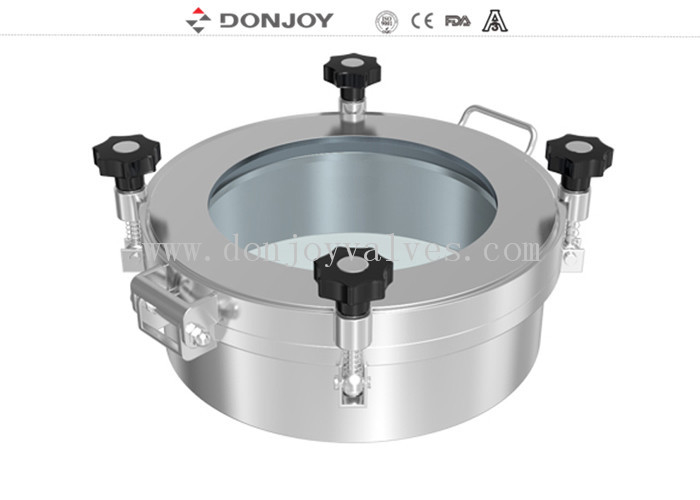

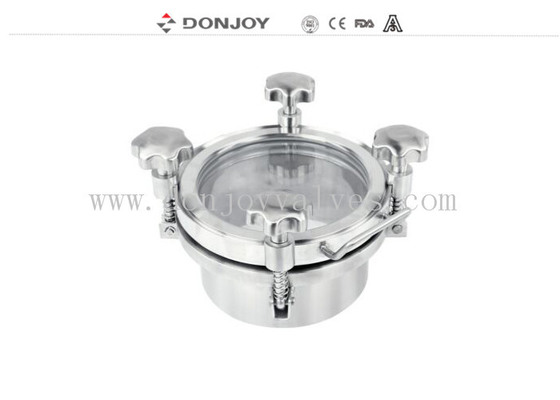

SS316L Circular Glass Manhole Covers 450×100mm For Pharmaceutical Stirring Tank
Tag:
Stainless steel oval flange quick open manhole,
Top quality stainless steel pressured manway cover
Quick Detail
Sight Glass Mixing Tank Manhole Cover, Food grad Tank Manway.
Size: 200mm,220mm,300mm,350mm,400mm,430mm,450mm,500mm,600mm or customized
Type: Glass Type
Handle: Plastic, Stainless Steel
Materials: 1.4301/1.4404, SUS304/SUS316L,AISI304 , AISI316L
Specification
|
Product Name: |
450*100mm SS316L Round pressure manhole with Glass for pharmaceutical stirring tank |
|
Material: |
AISI304, AISI316L |
|
Size: |
200-600 |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded, Flange |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Technical Features:
Gasket: EPDM,NBR,SILICONE
Height:100mm,12mm,150mm or customized
Working Pressure:2-5Bar
Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm, 180Grit, 240Grit, 320Grit
Appication:
Foor dairy , food , chemical ,beverage ,pharmaceuticals ,water treatment ,beer etc .It is used as cap on the top of the vessel ,tank etc.
Product drawing
FAQ:
Q1: Can you do as specifize size and print own logo on it ?
R.E : Yes, We support specifications cutomize and personalized customization
Q2: What about the delivery time of the manhole cover
R.E: Normally Takes about 7-10 days
Q3:How about the Surface
R.E: Our standard with mirror inside and outmatt side.If your have requirement in Ra,please let me know it.
Q4: Can we got one pcs for Samples
R.E: Yes, Of course
Q5: How about the pressure
R.E: Our standard with 2-5 Bar, if you need 10Bar, please inform us we can according your reqruriement to customized.
