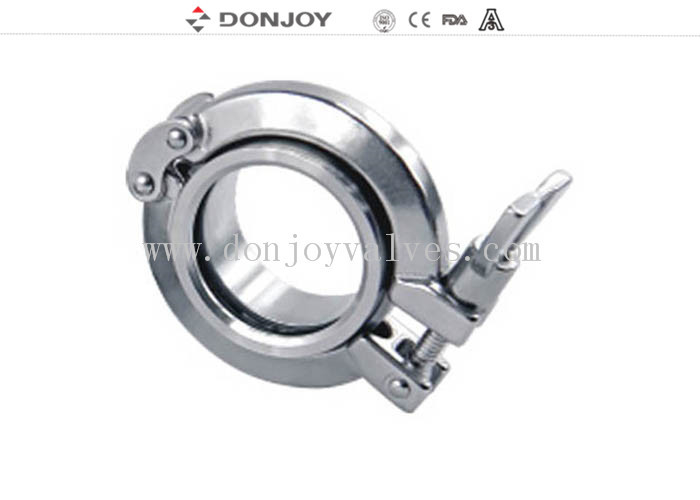

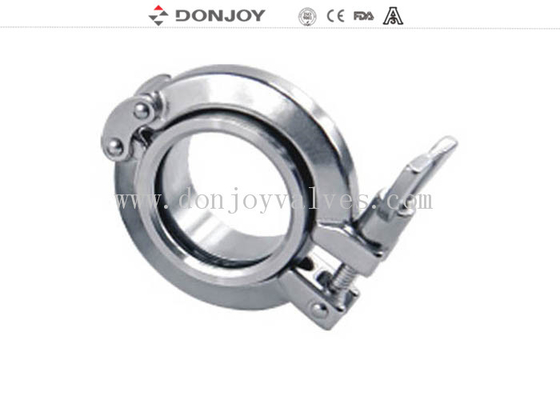

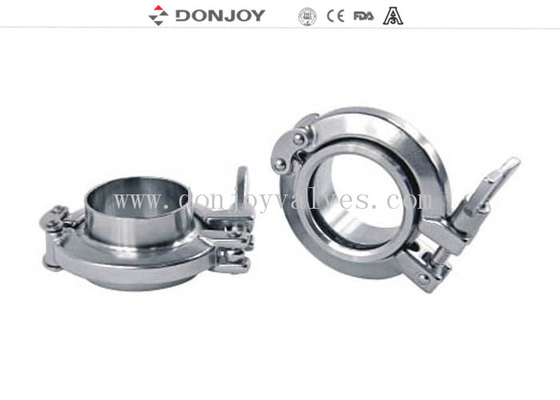

316L Stainless Steel Clamp Union Sight Glass 1.5 inch with tempered glass
Brief Description
Clamp union Sight Glass
Size:1 inch - 12 inch
Operation mode: Manual
Gasket: EPDM, PTFE
Specification
|
Product Name: |
316L Stainless Steel Clamp Union Sight Glass 1.5 inch with tempered glass |
|
Valve Body Material: |
SS304/SS316L/1.4301/1.4404 |
|
Seal Material: |
EPDM,PTFE,SILICON,etc |
|
Sight glass: |
tempered glass |
|
Max.temperature: |
120 degree |
|
Availably connection: |
Clamp, Thread, weld, Flange |
|
Availably standard: |
DIN, SMS, 3A, ISO |
|
Certificate: |
3A, PED, FDA, ISO |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
|
Model of tubular sight glass: |
DIN-VSJ130N1, IDF-VSJ130N1, VSJ130N1, SMS-VSJ130N1 |
|
Standard of gasket: |
FDA177.2600 |
Application
Clamp union sight-glass is comprised of stainless steel frame and glass.Through it, operator canobserve the flowing of the liquid substance clearly and precisely in the fields of flood,cosmetic, pharmaceutical and fine chemicals industuries.
Design
360° full angle for observation
Can be used in vertical or horizontal position
Could be installed with light and wipper.
Parts contact with liquid : ASME 316L/304
