| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.VSJ300Y1 |
| الـ MOQ: | Negotiation |
| تفاصيل التعبئة: | Carton, Wooden Case |
| شروط الدفع: | T/T,L/C, Credit Card |

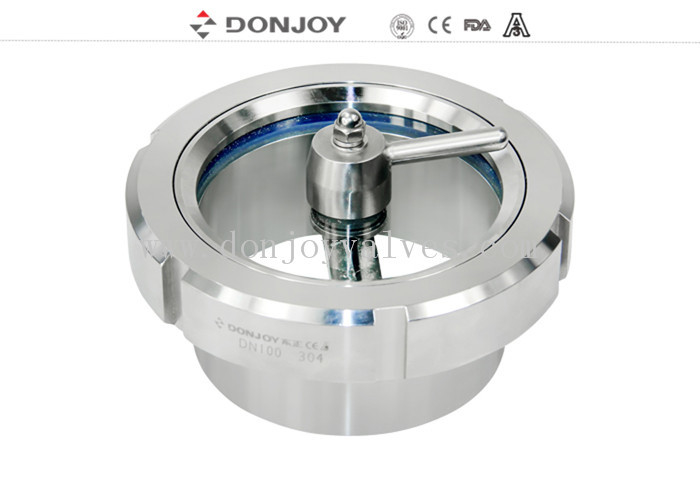

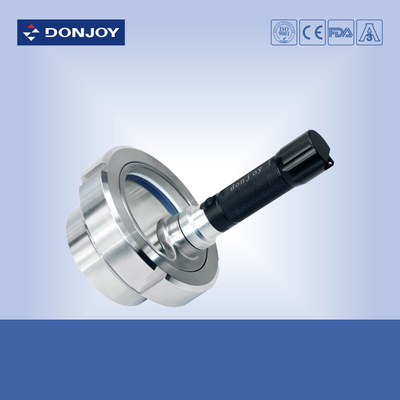

Quality DN150 Stainless Steel Union Sight Glass with the dust wiper
Quick Detail
DN150 union Sight Glass
Size:DN25-DN150, 1"-6"
Type: Union Type
Gasket: EPDM,PTFE
Working Pressure:vacuum 10Bar
Material: 304(1.4301), 316L(1.4404)
Specification
|
Product Name: |
Quality DN150 Stainless Steel Union Sight Glass with the dust wiper |
|
Valve Body Material: |
SS304/SS316L/1.4301/1.4404 |
|
Seal Material: |
EPDM,PTFE,SILICON,etc |
|
Sight glass: |
tempered glass |
|
Max.temperature: |
-10 to 80 degree |
|
Available connection: |
Clamp, Thread, weld, Flange |
|
Available standard: |
DIN, SMS, 3A, ISO |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008 |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
|
Operation mode: |
Charging mode |
|
Structure: |
union sight glass + lighter + wiper |
Application
Union-type-sight-glass DIN11851/SMS (Standard fir dairy products), with transparent
circular glass. Threaded nozzle with the welded neck.It is used viewing the biologic reactor, blender in laboratary, filter, processing container, pipeline and other closed container.
Especially apply in pharmacy, food and beverage processing, such as the brewery, dairy.
Technical Features
One charge can be used for 2-3 months( depending on frequency of use)
Waterproof, explosion-proof, hygienic design
Various Type
