| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.VSJ400N1 |
| الـ MOQ: | Negotiation |
| تفاصيل التعبئة: | Carton, Wooden Case |
| شروط الدفع: | T/T,L/C, Credit Card |

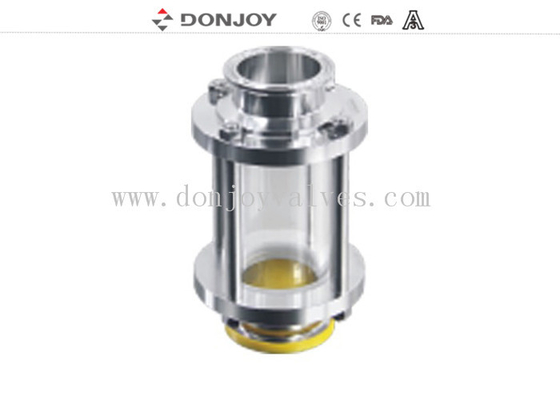

Clamp type SS Inline sight glass with high quality tempered glass 10 bar max
Quick Detail
Clamp Sight Glass
Size:DN10-DN150/0.5"-6"
Gasket: EPDM, NBR, FPDM
Working Pressure:10Bar
Specification
|
Product |
Clamp type SS Inline sight glass with high quality tempered glass 10 bar max |
|
Valve Body Material: |
SS304/SS316L/1.4301/1.4404 |
|
Seal Material: |
EPDM,NBR,FPM |
|
Sight glass: |
tempered glass |
|
Max.temperature: |
-10 to 120 degree |
|
Battery: |
No |
|
Availably connection: |
Clamp, Thread, weld, DIN, SMS, IDF |
|
Availably standard: |
DIN, SMS, 3A, ISO |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008 |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
|
Packaging Details: |
Plywood case or customerized. Or as per the request of customers |
|
Delivery details: |
10-20 days |
Application
Clamp sight glass is comprised of stainless steel frame and tempered glass. Through it, operator can observe the flowing of liquid clearly and precisely in the fields of food,cosmestic, pharmaceutical and fine chemicals industires.
Size from 0.5"-6" to DN10--DN150 the glass can be installed on the equipment thoughclamps.
Tag : Sight Glass, Tube Glass, Tri clamp glass
