| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.VQD100Q2 |
| الـ MOQ: | Negotiation |
| تفاصيل التعبئة: | carton box |
| شروط الدفع: | T/T, LC, Credit Card |

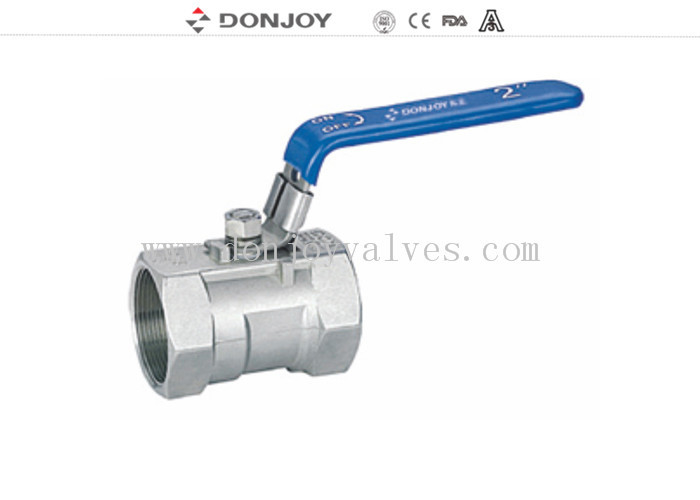

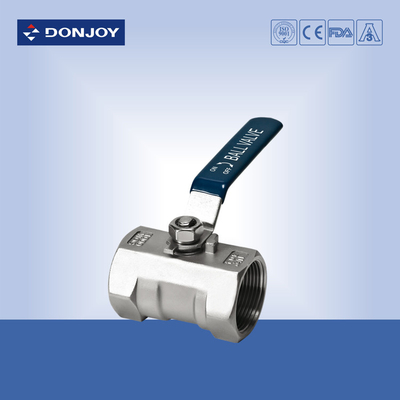

One Peice Sanitary Ball valve With Female Thread Connection
Detail:
one piece ball valve
Connection: Clamped, Thread, Welding,DIN, SMS
Standard: DIN,3A,SMS,ISO,IDF, RJT..
Channel:straight through type
Specification
| Product Name: | Stainless steel One Peices industrial Ball valve With Female Thread Connection |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | PTFE |
| Max. Working Pressure: | 10Bar |
| Working Temperature: | -40-180 degree |
| Availably size: | DN8-DN100, 1/2"-4" |
| Availably connection: | Weld,Clamp,FemaleThread |
| Availably standard: | DIN,SMS,3A |
| Channel | straight through type |
| Operated: | Manual,Pneumatic,Electric, |
| Certificate: | DIN, SMS 3A |
Applications:
This series ball valve is applicable for petroleum, food beverage, cosmestic industries.
This kind of ball valve can work by pneumatic actuator operation or manual operation.
Structure: one-piece, two-piece, three-piece, flange, etc.
Technical Feature
Nominal pressure: PN1.6, 2.5, 4.0, 6.4MPa
Strength testing pressure: PT2.4, 3.8, 6.0, 9.6 MPa
Seat testing pressure(low pressure): 0.6MPa
Applicable temperature: -40 C to 180 C
Competitive Advantage:
Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Trovincial Science R & D Center, AAA Credit Enterprises.
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
