| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.ERK421 |
| الـ MOQ: | Negotiation |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | Carton, Wooden Case |
| شروط الدفع: | T/T,L/C, Credit Card |

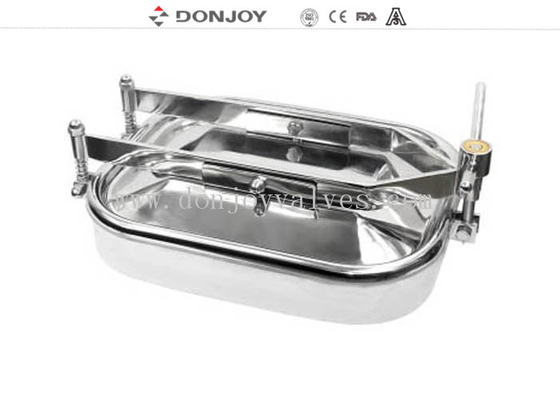

Matt Surface Wrench Type Square Tank Manhole Cover Oval Mayway For Vessel
Application
The manhole is square shape with open lid, mainly used in food, wine, beverage, pharmaceutical and other industries tank equipment.
Tags:
Tank Manhole Cover,Food grade tank cover, Rectangular manway
Quick Detail
Tank Manhole Cover,Manway, Stainless steel
Size:435*335,530*430,635*525
Type: Square Type,
Gasket: EPDM,NBR,SILICONE( FDA177.1600)
HEIGHT:65mm,80MM,100MM, Or according to Customer Requirement.
Working Pressure:0.2-1Bar
Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm
Specification
|
Product Name: |
535*435mm Stainless steel tank Oval Mayway , Square manhole Cover |
|
Material: |
AISI304, AISI316L |
|
Size: |
435*335,530*430,635*525,235*185mm |
|
Finish: |
Ra ≤0.8um,Ra ≤0.6um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded, Flange |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Question:
1. What about the delivery time of the manhole cover
Answer: Normally Takes about 7-10 days
2.How about the Surface
Answer: Our standard with mirror inside and matt outside.If you have requirement in Ra,please let me know it.
3. The height of the square Manhole:
Answer: Our standard with 65mm Height, 8mm thickness. Or if you have reqruirement, we also can according it to custom.
4.Can you do a specific size and print your own logo on it ?
Answer: Yes, We support specifications customize and personalized customization
5.How long it is to make small quantity or samples
Answer: Samples for test is allowed. And it takes about 1-2 days for our standard manhole.
Notes: Our standard design with non-pressure, for pressure please specify.
Product drawing
