| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.VTJ111Q1 |
| الـ MOQ: | Negotiation |
| تفاصيل التعبئة: | carton box |
| شروط الدفع: | T/T, LC, Credit Card |

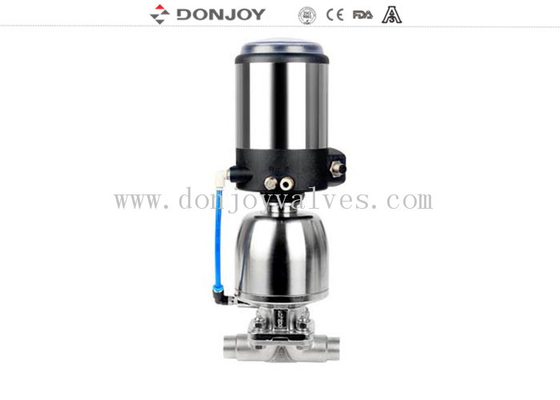

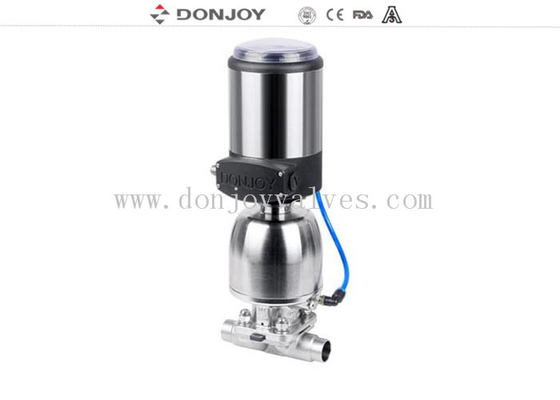

Stainless steel 316L / 304 Pneumatic Regulating diaphragm Valve for flow control
Specifications
|
Product Name: |
Pneumatic Regulating Diaphragm Valve with Control Head |
|
Valve Body Material: |
AISI316L |
|
Seal Material: |
EPDM |
|
Working Pressure: |
10Bar |
|
Max. Working Temperature: |
120 degree |
|
Available size: |
DN20-DN100 or 1" - 4" |
|
Available connection: |
CLAMP, DIN, SMS |
|
Air Operation: |
can be configured to intelligent/C-TOP controller |
|
Operate: |
Pneumatic |
|
Function |
Flow regulating |
|
Certificate: |
FDA,CE, 3A |
|
Application scope |
Dairy, food, beverage, pharmacy, cosmetic etc |
Description
Options for Regulating Valve
Heat Jacket type regulating valve
Diaphragm-Aseptic Regulating valve
Non-Retention Regulating Valve
Aseptic Regulating valve
Deadline regulating valve
Manual Regulating valve
High pressure actuator regulating valve
Body Combination Type: 20,30,11,12,21A,22A
Operating Principles
Adjustable diaphragm valve is mainly used in biomedical fluid flow control system, the flow rate adjustment the effect of section, the regulator has high standard diaphragm valve all clean characteristics fluid after adjustment body conveying cavitation will be less.
The position of valve tapered plug is adjusted by position.So as to control flow rate through the valve(PD).Also intelligent process controller can control position and flow rate(PID)
Technical feature
Size: DN25 - DN100 or 1" - 4"
Working temperature: -10℃ to + 120℃ ( EPDM ), 14℉
Working pressure: 10 bar / 145 PSI
Compressed air pressure: 6 - 8 bar / 87 - 116 PSI
Connection of pneumatic actuator: G1/8" (BSP)
Process signal: 4 - 20mA, 0 - 10V (optional)
Diaphragm regulating valve KV value curve flow
Tag: Diaphragm valves, Regulating valves, Control valves
