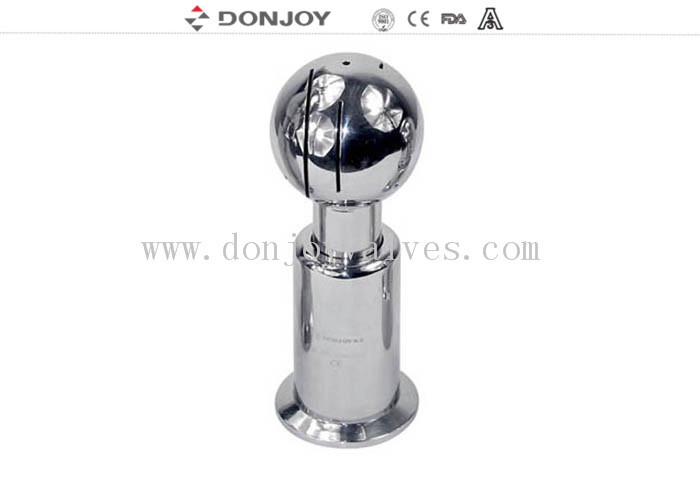

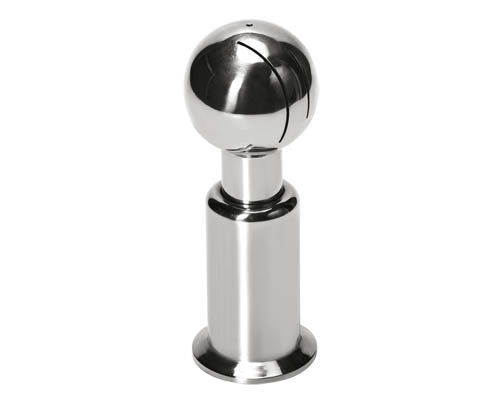

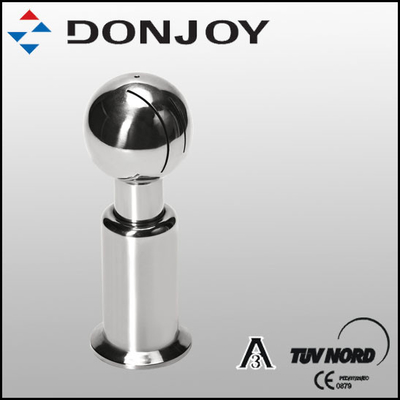

DONJOY Stainless steel sanitray rotating clamped cleaning ball /spray ball
Quick Detail
Stainless steel Revolving Cleaning Ball, Revolve Cleaning Ball, Sanitary Cleaning Ball
Material: SS304, SS316
Specification:1"-2.5", or required
Connection mode : clamped,welded,threaded,bolted
Specification
|
Product Name: |
DONJOY Stainless steel sanitray rotating clamped cleaning ball /spray ball |
|
Material: |
SUS304/316L;PTFE |
|
Flow: |
4-45m³/h |
|
Inlet Pressure: |
2-10 bar |
|
Suggest Pressure: |
4bar |
|
Availably size: |
3/8"-2.5" |
|
Connection way: |
thread BSP,clamp Pin, Welded |
|
Max temperature: |
95°C |
|
Max environment temperature: |
140°C |
|
Application Scope: |
Widely used in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage |
|
Typical application: |
process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding |
|
Advantages: |
Self-cleaning; low liquid consumption; heath design |
|
Typical cleaning methods: |
fixed installation CIP system |
|
Packaging Details: |
Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers. |
|
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Clamped Rotary Cleaning Ball
| Q | Size |
OD |
T | Ht | Hs | 2Bar | ||
| Spray Radius(M) | Cleaning Radius(m) | Flow Rat(m³/H) | ||||||
| 28 | 1/2” | 12.9 | 25.4 | 101.2 | 94.2 | 2.5 | 1.1 | 2.5 |
| 3/4” | 19.2 | 25.4 | 101.2 | 94.2 | 2.8 | 1.2 | 2.8 | |
| 1” | 25.7 | 50.5 | 101.2 | 94.2 | 2.8 | 1.3 | 3.0 | |
| 45 | 3/4” | 19.2 | 25.4 | 137. | 125.2 | 3.0 | 2.2 | 6 |
| 1” | 25.7 | 50.5 | 137.2 | 125.2 | 3.4 | 2.5 | 6.5 | |
| 1.25” | 32.1 | 50.5 | 137.2 | 125.2 | 3.5 | 2.6 | 7 | |
| 65 | 1.25” | 32.1 | 50.5 | 175.7 | 159.7 | 4.0 | 3.0 | 12 |
| 1.5” | 38.4 | 50.5 | 175.7 | 159.7 | 4.2 | 3.1 | 15 | |
| 2” | 51.1 | 65 | 177.7 | 161.7 | 4.5 | 3.2 | 16 | |
| 75 | 1.5” | 38.4 | 50.5 | 204.7 | 184.7 | 6.0 | 4.1 | 18 |
| 2” | 51.1 | 64 | 204.7 | 194.7 | 6.5 | 4.2 | 22 | |
| 2.5” | 63.8 | 205.7 | 185.7 | 7.0 | 4.4 | 25 | ||
Export Documents
1. 3.1 Certificate ( Quality Material Certificate)
2. Country of Original ( CO, FORM E,Form A..)
3. Surface Report Certificate
4.Packing List
5.Commercial Invoice
Packing and Delivery :
Packing Details:1st step:washing and cleaning; 2nd step:shrink wrap; 3rd step: carton packing ; 4th step:standard exported plywood case package Besides,We will sign on the surface of eah carton of the customer's order number,quantity pcs per carton,size and etc.
Delivery Detail:7-15Days
Payments : T/T, Westerm Union, L/C Credit Card
If you need morning information,Please do not hesitate to contact us.
