| اسم العلامة التجارية: | DONJOY |
| الـ MOQ: | Negotiation |
| السعر: | $10 per piece |
| تفاصيل التعبئة: | Carton, Wooden Case |
| شروط الدفع: | T/T,L/C, Credit Card |

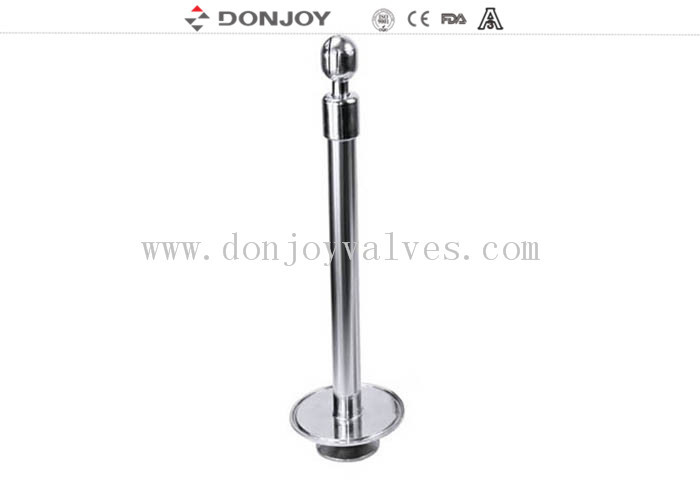

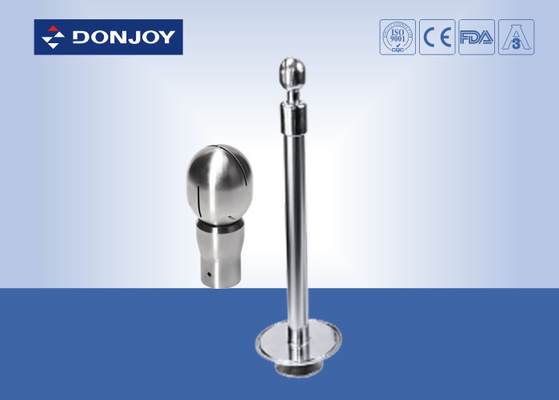

SS316L Sanitary Stainless Steel Rotary CIP Spray Ball 2" Clamp round ball
Quick Detail
Cleaning Ball
Type: 360 Degree, 180 Degree, 270 Degree
Connection: Clamped
Materials: SS304(1.4304),SS316L(1.4401),
Specification
|
Product Name: |
SS316L, 2" Clamped Elliptical ball cleaner, Spary tank cleaning Ball |
|
Material: |
SUS304/316L;PTFE |
|
Flow: |
4-45m³/h |
|
Inlet Pressure: |
4-10 bar |
|
Suggest Pressure: |
6 bar |
|
Available size: |
1"-2.5" |
|
Connection way: |
thread BSP,clamp Pin, Welded |
|
Max temperature: |
95°C |
|
Max environment temperature: |
140°C |
|
Application Scope: |
Widely used in food and dairy products, Pharmaceutical, Chemical treatment, Transport equipment, Beverage |
|
Typical application: |
process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding |
|
Advantages: |
Self-cleaning; low liquid consumption; heath design |
|
Typical cleaning methods: |
fixed installation CIP system |
|
Packaging Details: |
Bubble pack for each. Outside packing is carton or plywood cases. Or as per the request of customers. |
|
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Typical Application
1.Fixedinstallaiton CIP System
2.Process Containers and reator
3.Store tank
4.Transport tank equipment
5.Fermentation
6.Yeast Breeding
Operating Principle
1. Rotary injector is hygenic tank cleaner,with 360degree coverage in a given tank or process container, the rotary jet head is driven by flow liquid through impeller in the pressure and flow increase will increase the length of the jet and the impact to the tank or vessel surface
2. Rotary injector with unique self cleaning function, internal is completely cleaning.

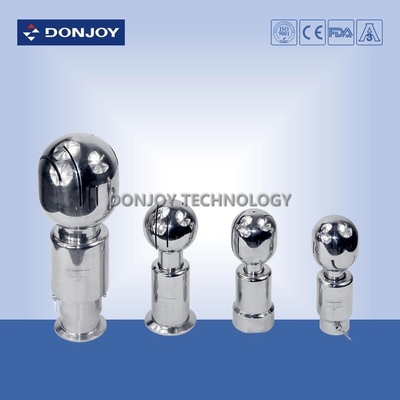

Rotary Cleaning BALL ( CLAMPED) Long Type
| Q | SIZE | OD | T | TD | 2Bar | ||
| Spray Radius(M) | Cleaning Radius(m) | Flow Rat(m³/H) | |||||
| 28 | 1/2” | 12.7 | 25.4 | 77.5 | 2.5 | 1.1 | 2.5 |
| 45 | 1” | 25.4 | 50.5 | 77.5 | 3.4 | 2.5 | 6.5 |
| 65 | 1.5” | 38.1 | 50.5 | 91 | 4.2 | 3.1 | 15 |
| 75 | 2” | 50.8 | 64 | 106 | 6.5 | 4.2 | 22 |
