| اسم العلامة التجارية: | DONJOY |
| الـ MOQ: | Negotiation |
| السعر: | $8/pc |
| تفاصيل التعبئة: | Carton, Wooden Case |
| شروط الدفع: | T/T,L/C, Credit Card |

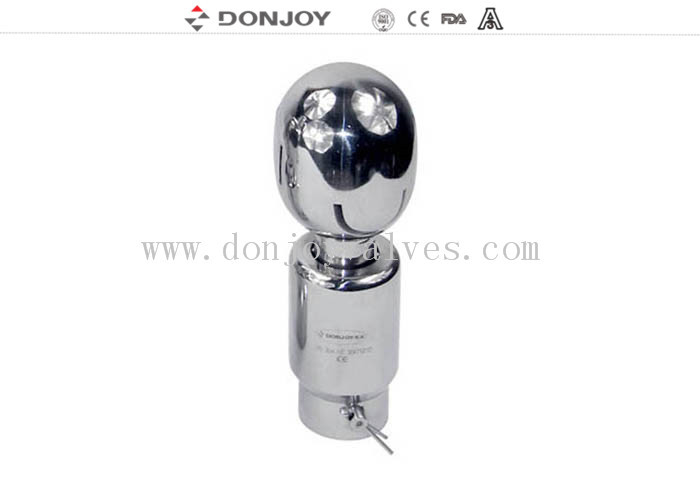

DIN / 3A / SMS Rotating CIP Spray Ball Thread Connection Washing Nozzle
Quick Detail
Cleaning Ball
Type: 360 Degree, 180 Degree, 270 Degree
Connection: Thread, Pin, Weld, Clamp
Materials : SS304,SS316L
Specification
Product Name: |
Rotary Tank cleanerl. Spary claing ball, Elliptial / Round Ball,Thread Connection |
| Material: | SUS304/316L;PTFE |
| Flow: | 4-45m³/h |
| Inlet Pressure: | 4-10 bar |
| Suggest Pressure: | 6 bar |
| Availably size: | 3/4"-2.5" |
| Connection way: | thread BSP,clamp Pin, Welded |
| Max temperature: | 95°C |
| Max environment temperature: | 140°C |
| Application Scope: | Widely used in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage |
| Typical application: | process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding |
| Advantages: | Self-cleaning; low liquid consumption; heath design |
| Typical cleaning methods: | fixed installation CIP system |
| Packaging Details: | Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers. |
| Delivery details: | Usually within 20 days after receiving T/T down payment. |
Typical Application

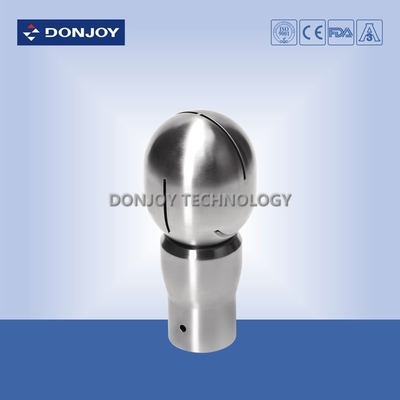

Rotary cleaning ball: Ball is Elliptical and Round. Jet orifice is flat slot shape.
1.Fixedinstallaiton CIP System
2.Process Containers and reator
3.Store tank
4.Transport tank equipment
5.Fermentation
6.Yeast Breeding
Bolted Cleaning Ball Size Table
| Q | INCH | DIN | Ht | Hs |
C |
2Bar | ||||
| Size | ID | Size | ID |
Spray Radius(M) |
Cleaning Radius(m) | Flow Rat(m³/H) | ||||
| 28 | 1/2” | 12.9 | DN10 | 12.2 | 90.5 | 93.5 | 7 | 2.5 | 1.1 | 2.5 |
| 3/4” | 19.2 | DN15 | 18.2 | 93.5 | 86.5 | 10 | 2.8 | 1.2 | 2.8 | |
| 1” | 25.7 | DN20 | 22.2 | 93.5 | 86.5 | 10 | 2.8 | 1.3 | 3.0 | |
| 45 | 3/4” | 19.2 | DN20 | 22. | 128.5 | 116.5 | 10 | 3.0 | 2.2 | 6 |
| 1” | 25.7 | DN25 | 28.3 | 128.5 | 116.5 | 10 | 3.4 | 2.5 | 6.5 | |
| 1.25” | 32.1 | DN32 | 34.3 | 128.5 | 116.5 | 10 | 3.5 | 2.6 | 7 | |
| 65 | 1.25” | 32.1 | DN32 | 34.3 | 165.5 | 149.5 | 10 | 4.0 | 3.0 | 12 |
| 1.5” | 38.4 | DN40 | 40.3 | 169.5 | 153.5 | 14 | 4.2 | 3.1 | 15 | |
| 2” | 51.1 | DN50 | 52.3 | 172.5 | 156.5 | 14 | 4.5 | 3.2 | 16 | |
| 75 | 1.5” | 38.4 | DN40 | 40.3 | 197.5 | 177.5 | 14 | 6.0 | 4.1 | 18 |
| 2” | 51.1 | DN50 | 52.3 | 197.5 | 177.5 | 14 | 6.5 | 4.2 | 22 | |
| 2.5” | 63.8 | 201.5 | 181.5 | 14 | 7.0 | 4.4 | 25 | |||
Drawing
FAQ
1. What about the delivery time of the Cleaning Ball
Answer: Normally Takes about 7-10 days
2.How about the Surface
Answer: Our standard Matt outside .If your have requirement in Ra,please let me know it.
3.Can you do as specifize size and print own logo on it ?
Answer: Yes, We support specifications cutomize and personalized customization
4.What connection of the cleaning ball you have ?
Answer: Clamped, Thread, Welded, Bolted..
If you need more informations,Please called US 86-18967799769 Jasmine Zhuang
