| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.VSJ400N1 |
| الـ MOQ: | Negotiation |
| تفاصيل التعبئة: | Carton, Wooden Case |
| شروط الدفع: | T/T,L/C, Credit Card |
DONJOY Stainless steel clamped straight sight glass with tempered glass 120 degree
Quick Detail
Straight Sight Glass
Size:DN10-DN150,0.5"-6"
Gasket: Silicone in accordance with FDA 177.2600
Max Working Pressure:10Bar
Specification
|
Product Name: |
Stainless steel clamped straight sight glass with tempered glass 120 degree |
|
Valve Body Material: |
SS304/SS316L/1.4301/1.4404 |
|
Seal Material: |
PTFE in accordance with FDA 177.2600 |
|
Sight glass: |
tempered glass |
|
Max.temperature: |
-10 to 120 degree |
|
Battery: |
No |
|
Availably connection: |
Clamp ends |
|
Availably standard: |
DIN, SMS, 3A, ISO |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008 |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
|
Packaging Details: |
Plywood case or customerized. Or as per the request of customers |
|
Delivery details: |
10-20 days |
Application
Flanged sight glass with lamp is comprided of stainless steel frame and glass.Through it,
operator can observe the flowing of the liquid substance clearly and precisely in the fields of
food, cosmestic, oharmaceutical and fine chemicals industries.
Techical Features:
High light, white cold source/waterproof, explosion-proof design.
Cable power supply AC110V-220V, DC24V
Wireless power supply, one charging can be used for 2-3 months (depending on the frequency of use)
Assemble flange with glass by using hexagon socket bolts.
Working temperature varies from -10 degree c to 120 degree
Product drawing

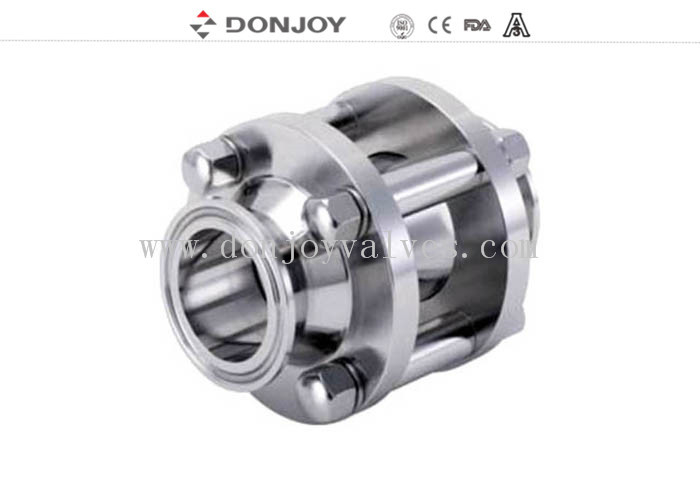

Product display
