| اسم العلامة التجارية: | DONJOY |
| الـ MOQ: | Negotiation |
| تفاصيل التعبئة: | carton box |
| شروط الدفع: | T/T, LC, Credit Card |

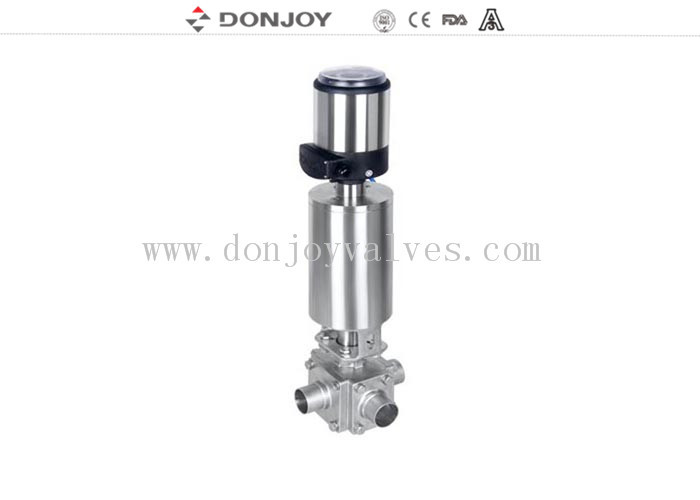

Stainless steel pneumatic ball valve for regulating valve with controller/signal indicator
Quick Detail
Size:1/2"-4", DN10-DN100
Structure: Ball type
Materials: Stainless steel, AISI 304/1.4301, AISI16L/1.4404
Standard: DIN, SMS, 3A, ISO, RJT etc.
Connection: Welding, Clamp, Thread, Flange etc.
Flow pattern: Directly
Seat material: PTFE
Operating type: Manual, Pneumatic, Control Head, Positioner...
Specification
|
Product Name: |
Stainless steel Pneumatic direct ball valve with Clamped Connection |
|
Valve Body Material: |
SS304 or SS316L |
|
Seal Material: |
PTFE |
|
Working Pressure: |
10Bar |
|
Temperature: |
- 30 ℃ - 150 ℃ (180℃ optional) |
|
Available size: |
DN10-DN100 or 1/2" - 4" |
|
Available connection: |
Weld,Clamp,Thread, Flange |
|
Ball Type: |
Directly |
|
Operated: |
Manual,Pneumatic,Electric,control Head |
|
Controller: |
IL-TOP / C-TOP / FKQ-TOP etc. |
|
Signal indicator box: |
Optional |
Design
1. Free of Maintenances
2. compact and portable
3. small operating torque
4. gasket complies with PTFE FDA 177.2600
5. Hand lever can be installed on the side of the valve body, no matter of the flow direction.
6. It can be installed with pneumatic and electric actuators.
7. With cleaning and drainage port
Feature

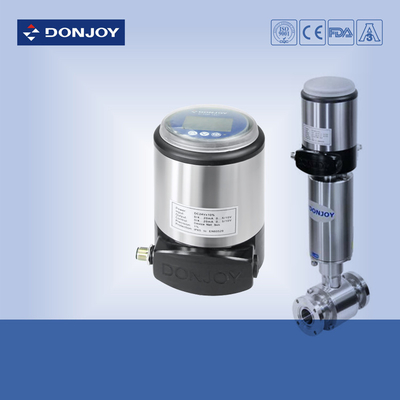

Controller: IL-TOP / C-TOP / FKQ-TOP etc.
Signal indicator box: Optional
Display
Tag : Donjoy sanitary valves, 3 way ball valves, Control ball valves
