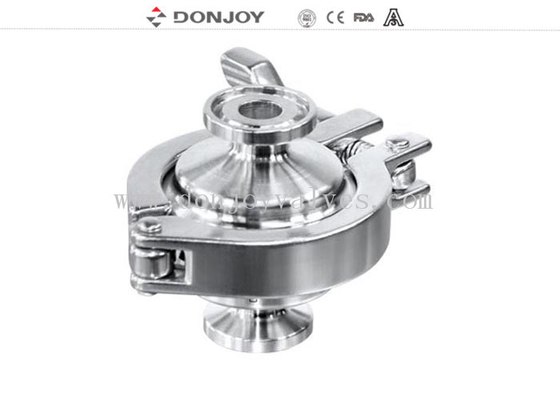

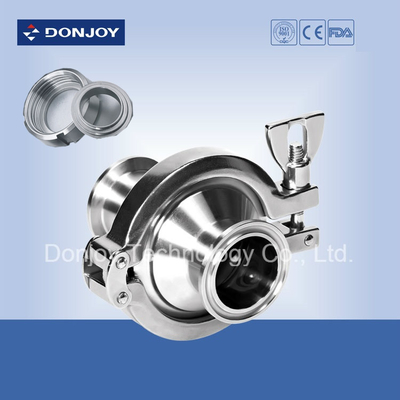

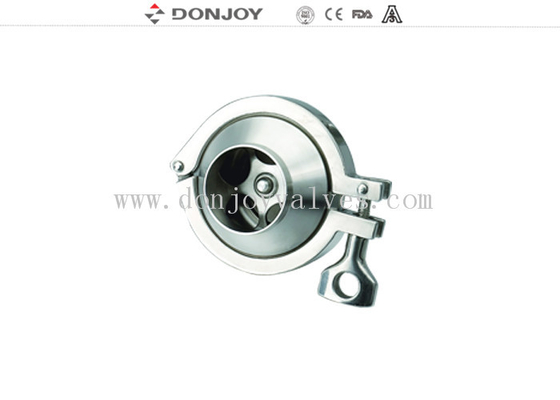

Clamp check valve with middle clamp 0.5 inch SMS RJT ISO IDF thread connection
Brief introduction
Sanitary Check Valve
Easy disassemble
Small-size construction
DIN11851 connection (standard)
Specification
| Product Name: | Threaded check valve with middle clamp 1 inch SMS RJT ISO IDF thread connection |
| Valve Body Material: | SS304 / 316L |
| Seal Material: | EPDM |
| Max. Working Pressure: | 10 Bar |
| Opening pressure: | 0.1 - 0.3bar |
| Max. temperature: | 120 ℃ |
| Available size: | DN20 - DN100 |
| Available connection: | Thread, Weld, Clamp |
| Available standard: | DIN,SMS, ISO |
| Certificate: | FDA,CE, ISO etc. |
| Middle connection: | Clamp |
| End connection: | Thread |
| Transportation: | By air / sea / express / land etc. |
| Main production? | Sanitary valve, pump and pipe fittings. |
Description
Option of Check Valve
1. Connection: Clamp, Weld, Thread
2. Gasket: EPDM according to FDA177.2600
3. Standard: DIN,SMS, RJT, IDF, ISO
4. Middle clamp: optional
5. Thread type: optional
6. Gasket: NBR / VITON / PTFE
Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Details
Q1: Transportation?
A1: By air / sea / express / land etc.
Q2: When DONJOY was established?
A2: In Year 1993.
Q3: Main valve type?
A3: Sanitary butterfly valve, diaphragm valve, check valve etc.
Q4: Main exporting market?
A4: For European and American markets.
Q5: Start point of DONJOY?
A5: The production of sanitary butterfly valve.
Specification in SMS / RJT / ISO / IDF thread connection
Q: Why would I choose you?
DONJOY has been engaging in manufacturing sanitary valves, fittings, tank components and pumps for over 27 years, outstanding in production capacity, effective management, accurate lead time, on-time shipments and problems-solvingrate after sales.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity for test for first time cooperation.
Q: Hong long that you company for export experience ?
we have more than 20 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
T/T and Credit Card,L/C
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
Tag : non return valve, check valve. Sanitary valve
