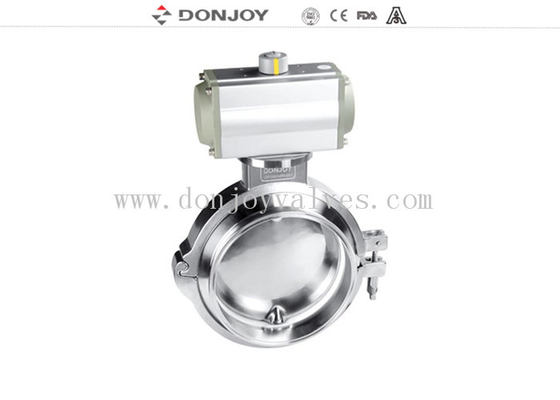

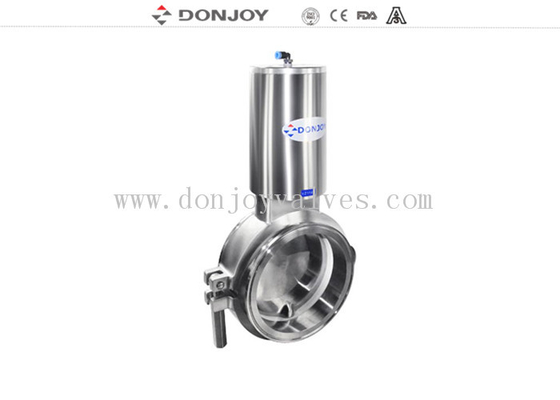

Hygienic single-acting pneumatic powder clamp butterfly valve small torque
Specifications
|
|
Hygienic single acting pneumatic powder clamp butterfly valve small torque |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
Max Working Pressure: |
10Bar |
|
Max.Working Temperature: |
120 degree C |
|
Available size: |
DN65-DN300, 2.5"-12" |
|
Available connection: |
Clamp/welding |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Manual,Pneumatic |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Packaging Details: |
Bubble pack for each valve. Outside packing is carton or plywood cases. Or as per the request of customers. |
|
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Advantage
1.The butterfly valve dedicated to powder.
2.Apply to a vacuum environment
3.Small torque
4.Long lifetime
5.Easy to disassemble
Material
The material connected with others: AISI 316L
The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining
Options
Gasket: NBR / MVQ / FPM
The pneumatic actuator of double-acting
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
Tag : Donjoy Butterfly valves, Powder valves, Sanitary butterfly valve
