| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.VFT101Q1 |
| الـ MOQ: | Negotiation |
| السعر: | US $400 - 1,200 / Piece |
| تفاصيل التعبئة: | carton box |
| شروط الدفع: | T/T, LC, Credit Card |

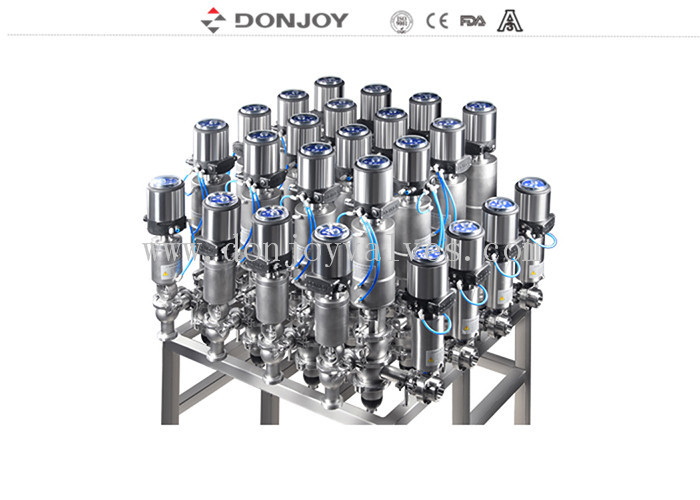

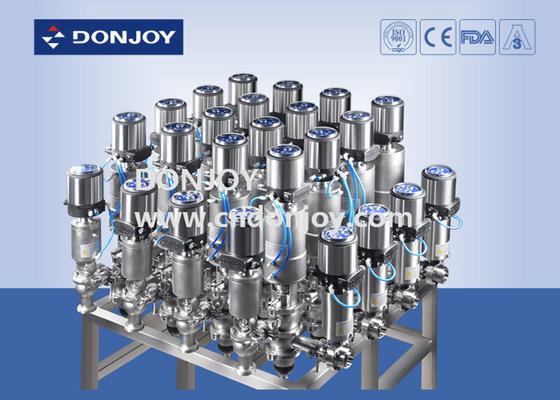

Mixing-proof valve array sanitary reversing seat valve typical applications 316L
Description
The manifold can be assembled by containers with various functions together.It can improveworking efficiency of system and control the whole production process.the manifold can choose any flexible hose pipe and jet deviator to change the flexure automatically.the kind of automatic operation is safe,flexible and effective.one set of manifold can served to multi pipelines.meanwhile other containers are filled in or empty,operator can clean up any one of them.the liuquid won't be polluted.
Specification
|
Product Name: |
mixing-proof valve array sanitary reversing seat valve typical applications |
|
Valve Body Material: |
316L |
|
Seal Material: |
EPDM (standard) /NBR/Viton |
|
Max Working Pressure: |
10 bar |
|
Max.Working Temperature: |
120 °C |
|
Available size: |
DN40 - DN100 or 1.5" - 4" |
|
Welding |
Orbital welding |
|
Control unit |
Can be installed C-TOP on every pneumatic actuator |
|
Pneumatic pressure |
10bar |
|
Pressure test |
PED |
|
Available connection: |
Clamp/welding/thread/flanges
|
|
Control system |
PLC control |
|
Application |
Widely used in dairy,juice,beverage,brewery,wine,food,pharmacy,etc. |
|
Standard manifold |
Manifold 4x4,Manifold 8x6 |
|
Matrix |
From 4 up to 48 valves |
Applications
Widely used in dairy,juice,beverage,brewery,wine,food processing,cosmetic,pharmacy industries.
Operating principles
According operation function,these valves should be connected with containers and working pipelines(such as filling pipes,drainage pipes and CIP cleaning pipes)
The operation is automatic,not manual to avoid any risks of accidents.

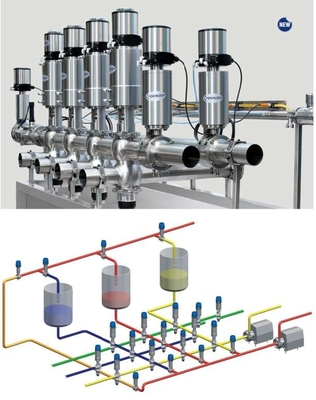

Examples of A Standard Manifold
Tag: Mixproof valves, Donjoy Mixproof valves, Sanitary valves
