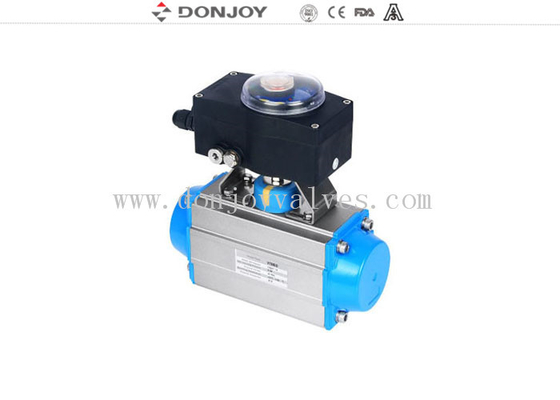

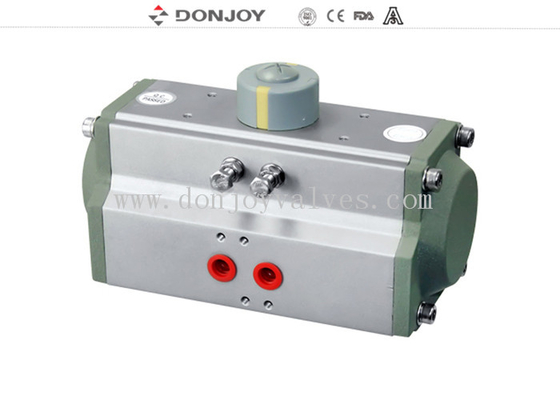

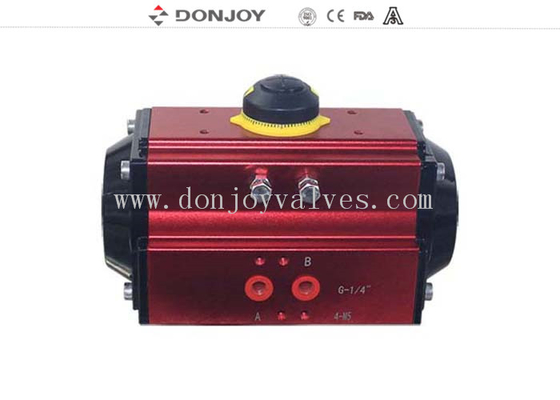

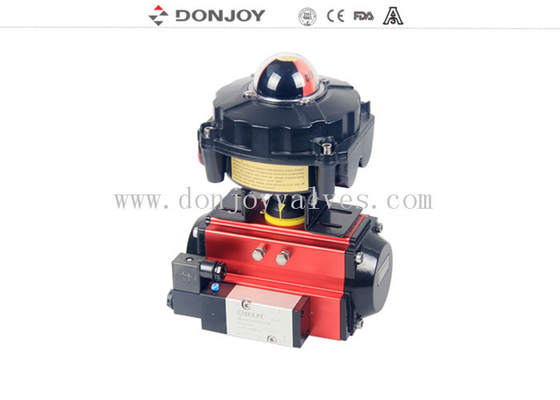

DC24V Horizontal Aluminum Pneumatic Actuator Air Cylinder Single Acting Actuator
Specification
Max Air pressure: 8Bar,
Mix Air Pressure: 2.5Bar
Working Temperature: -15 Degree to + 150 Degree
Air Supply : Clean Air after dry Or filtration, Non-corrosive Gas
Single acting or double acting
Single acting: Air spring
Double acting: Air-air
Air cylinder pneumatic actuator
Horizontal pneumatic actuator
Material
Aluminum
Application: Use for different valves to control the valve open and closed
Action: Double Action and Single Action
Size : DJ052/ DJ063/DJ075/ DJ083/DJ092/DJ0105/ DJ125
Different valve with different Torque to choose the Actuator
Structure
With the electric control unit.
| Double acting pneumatic actuator Torque Table | |||||
| Size | Torque(N.M) | Recommend valve size | |||
| Butterfly valve | Ball valve | 3 way ball valve | Industrial valve | ||
| DJ052 | 21 |
DN10-DN50, 0.5"-2" |
DN10-DN32, 0.5"-1.25" |
N/M |
N/M |
| DJ063 | 37 |
DN65-DN80, 2.5"-3.5" |
DN40-DN50, 1.5"-2" |
DN25-DN32, 1"-1.25" |
DN25,1" |
| DJ075 | 59 | DN100,4" | 2.5" |
DN40-DN50, 1.5"-2" |
DN32-DN40, 1.25"-1.5" |
| DJ083 | 74 |
DN125-DN150, 5"-6" |
DN65,3" | DN65,2.5" | DN50,2" |
| DJ092 | 114 | DN200,8" | DN80 | 3" | DN65,2.5" |
| DJ105 | 170 |
DN250-DN300, 10"-12" |
DN100,4" | DN80 | DN80,3" |
| DJ125 | 292 | N/M | DN125,5" | DN100,4" | DN100,4" |
| DJ140 | 439 | N/M | DN150,6" | N/M | DN150,6" |
| DJ160 | 669 | N/M | DN200,8" | N/M | DN200,8" |
| Single acting pneumatic actuator Torque Table | |||||
| Size | Torque(N.M) | Recommend valve size | |||
| Butterfly valve | Ball valve | 3 way ball valve | Industrial valve | ||
| DJ052-S | 12.5-8.5 |
DN10-DN32, 0.5"-1.25" |
DN10-DN15, 0.5"-0.75" |
N/M |
DN10-DN15, 0.5"-0.75" |
| DJ063-S | 21.2-13.7 |
DN40-DN50, 1.5"-2" |
DN25,1"
|
DN25,1" |
DN25,1" |
| DJ075-S | 292.2-21.2 | DN65,2.5"-3" | DN32,1.25" |
DN32,1.25"
|
DN32-1.25" |
| DJ083-S | 46.5-31.6 |
DN80,3.5" |
DN401.5" | DN40,1.5" | DN40,1.5" |
| DJ092-S | 69.3-46.7 | DN100,4" | DN50,2" | DN50,2" | DN50,2" |
| DJ105-S | 99-63 |
DN200-DN250
|
DN65,2.5" | N/M | DN65,2.5" |
| DJ125-S | 159-105 | N/M | DN80,3" | DN80,3" | N/M |
| DJ140-S | 260-172 | N/M | DN100,4" | DN100,4" | DN80,3" |
| DJ160-S | 422-279 | N/M | N/M | N/M | DN100,4" |
