| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.VDF301Q1 |
| الـ MOQ: | Negotiation |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | Carton box/Wooden box |
| شروط الدفع: | T/T, LC, Credit Card |

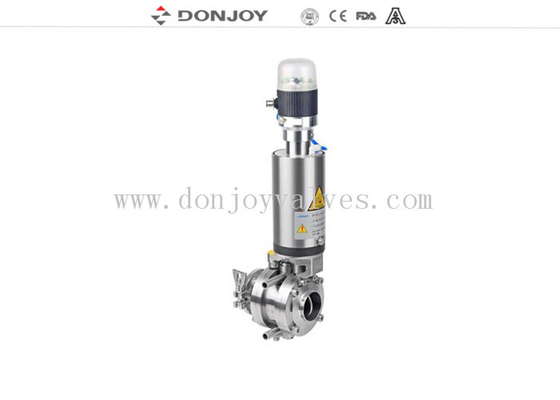

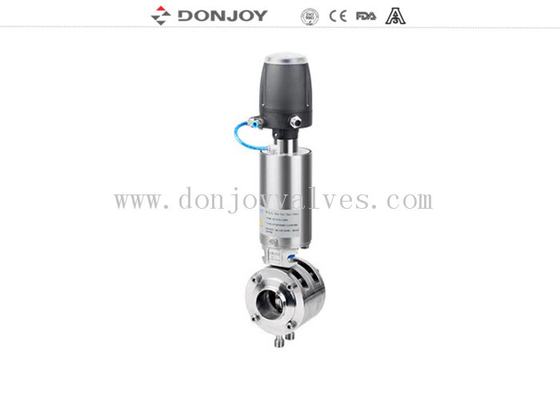

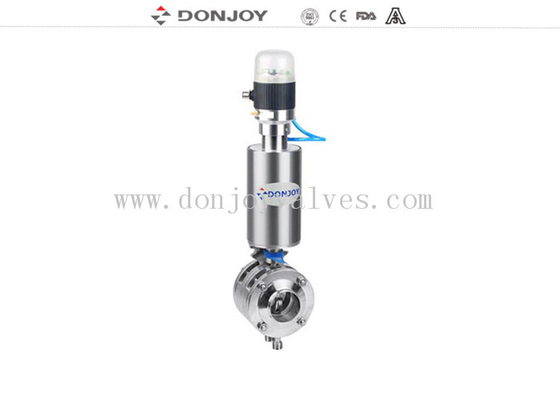

3A CE DONJOY pneumatic double seat butterfly valve with position feedback unit F-TOP
specifications
|
Product Name: |
3A CE DONJOY pneumatic double seat butterfly valve with position feedback unit F-TOP |
|
Valve Body Material: |
SS304/316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
Max Working Pressure: |
10Bar,PN16 |
|
Max.Working Temperature: |
130 degree C |
|
Available size: |
DN50-DN100, 2"-4" |
|
Available connection: |
welding / thread /Clamp/ special connection |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Manual,Pneumatic |
|
Handle application: |
Pull handle |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Feature of structure: |
Mixing proof butterfly valve with position feedback unit F-TOP |
|
Option: |
With smart head C-TOP or Positioner IL-TOP |
Classification
Mixture proof butterfly valve;
Double seat butterfly valve;
Single seat butterfly valve;
Material
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining
Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor
Handle selection
Pull handle
Connection
SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
outside packing are carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
Drawing
