| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | F-TOP 1553 |
| الـ MOQ: | Negotiation |
| السعر: | US $600 - 1,000 / Piece |
| تفاصيل التعبئة: | carton box |
| شروط الدفع: | T/T, LC, Credit Card |

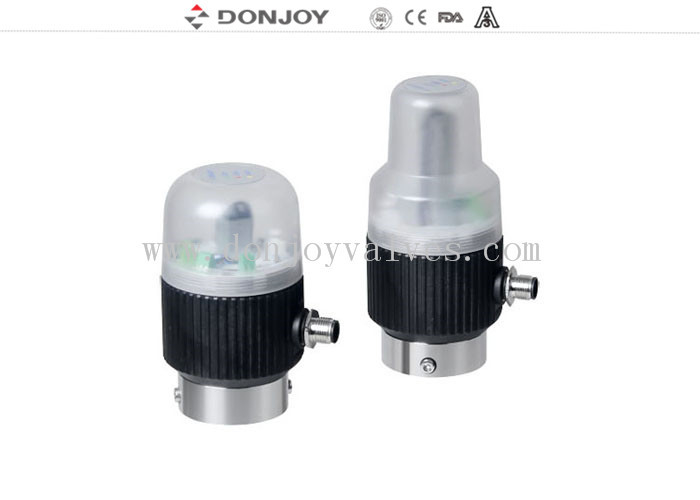

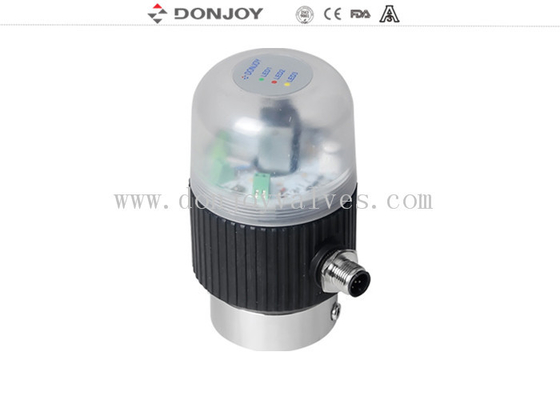

Single acting position feedback unit F-TOP stroke 60mm PNP 4-20mA for pneumatic valve control
Technical Feature
1.Feedback output:PNP DC24V& 4-20mA
2.power Supply: DC24V±10%
3.Accuracy: Repeat positioning accuracy≤0.%
4.Leakproof diagnostic Function
5.Display: three-section Light Color open: Green/Red, Close:red/Green
6.Strocke Range: 0-60MM/0-30MM
7.Middle position: yellow, suitable for mixproof valve
Specification
| Product Name | Position feedback unit F-TOP |
| Medium | Lubricated compressed air, inert gases |
| Max. Working temperature | 70℃ |
| Working pressure | 1.5 bar - 7 bar (22PSI to 102PSI) |
| Connector | G1/8" |
| Level of protection | IP67 |
| Stroke | Min. 3mm; Max. 70mm |
| Max. C - TOP units | 31 C - TOP units |
| Connecting cable | 2m |
| AS-I BUS | max. length: 1m |
| Operation mode | Pneumatic operation |
| Certificate |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
| Position feedback unit F-TOP-1553(Base version) | ||||
|
Application range | Input control | Actuator | Output signal |
| All kinds of pneumatic valve | No |
Single acting/ double acting/ three acting pneumatic actuator |
PNP 3 position 4-20mA |
|
Applications

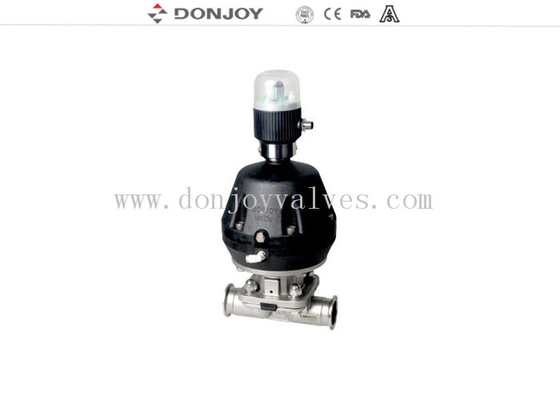

F-TOP is a pneumatic valve position feedback unit which is used for rotary motion. it's mainly designed for process position feedback of valve. It's compatible with most PLC automatic system. With digital communication or AS-I BUS Communication. It's used to control all kinds of processing valves by position feedback output, 3-section LED light display, Leakproof, et. It could be installed to various kind of pneumatic valves, such as pneumatic butterfly valve, ball valve, globe valve etc which is in the rotary motion
Installation
FAQ
Q1: Are you factory or trading company?
A1: We are factory. and we have all kinds of the products.
Q2: Where is your factory located? how can I visit there?
A2: Our factory is located in Wenzhou city, Zhejiang Province,China
Welcome you visit our factory for business negotiation. Please try to contact our staff first by email or telephone. we will make an appointment and arrange the pick up.
Q3: Can your factory print our brand on the product.
A3: Our factory can laser print customer’s logo on the products.
Q4: What is the Warranty for the products?
A4: 1 year,but not including quick-wear parts,like O-ring
Q5: Can we pay using Paypal for the samples? Does it cost extra ?
A5: Sorry we only accept TT.
Q6: Do you charge for samples or freight?
A6: According to our company policy, customers need pay for them, we will return sample charge to you in official order.
