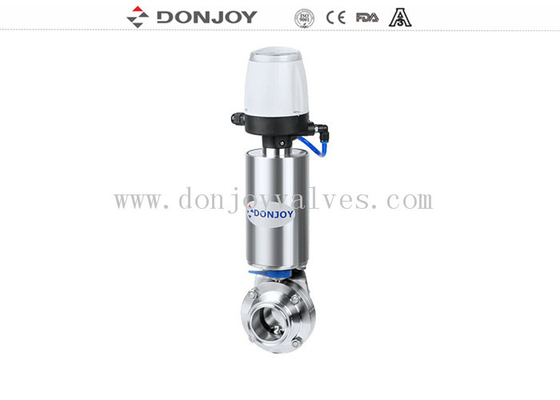

Donjoy F top contro head for sanitary valves

Donjoy F top contro head for sanitary valves

Applications

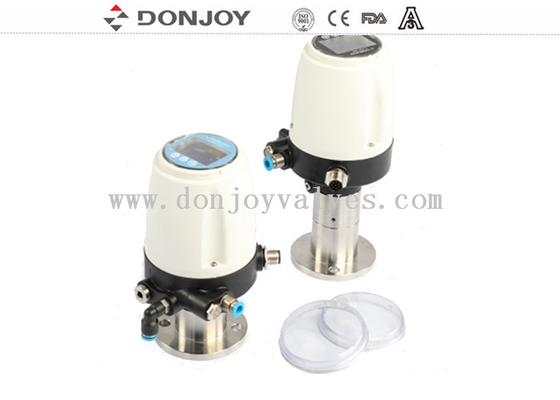

IL-TOP-2001 mini digital valve positioner

It is a straight-stroke pneumatic valve positioner, which can be installed on various pneumatic valves, such as pneumatic ball valves, pneumatic globe valves, pneumatic diaphragm valves, pneumatic angle seat valves, pneumatic control valves, etc. After install, it can realize valve flow adjustment, automatic control, and valve position display. The product has good appearance, small size, simple and convenient installation, and can be operated and debugged without professionals.

Technical specifications

Power supply : DC24V ± 10%

Control input: 0-5V/10V；4-20mA

Feedback Output : 0-5V/10V；4-20mA
Accuracy: repeat positioning accuracy ≤ 0.2%
Menu:OLED display in Chinese and English

Setting: One-button auto-tuning function

Operating mode: automatic & manual
Fault: gas cut, power off, automatic valve position reset (standard) valve position hold function (optional)

Stroke range:0-30mm,0-60mm

Single acting (standard)

Double acting (optional)

Power dissipation:single acting =40mA,double acting=65mA

Level of protection: IP67

Technical specifications

This controller can be used as a locator or processing controller.As a positioner,it can locate valve position by settling value.As a processing controller,MPU will receive signal from control unit by comparing setting position value of valve with actual position of  valve ,through PID control algorithm,processing controller will drive valve to exact target position of valve.

The controller is composed of MPU,detection unit of control signal,position detection,LCD display,keyboard,piezoelectric valve etc.
