| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | ASEPTIC TYPE |
| الـ MOQ: | Negotiation |
| تفاصيل التعبئة: | WOODEN CASE, CARTONS |
| شروط الدفع: | T/T,L/C, Credit Card |

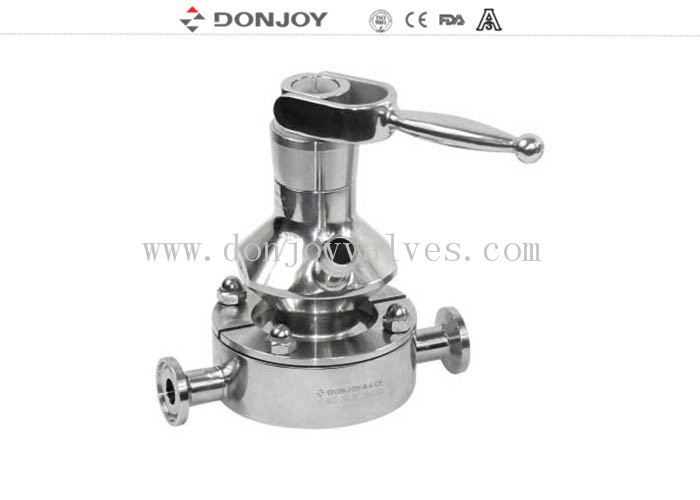

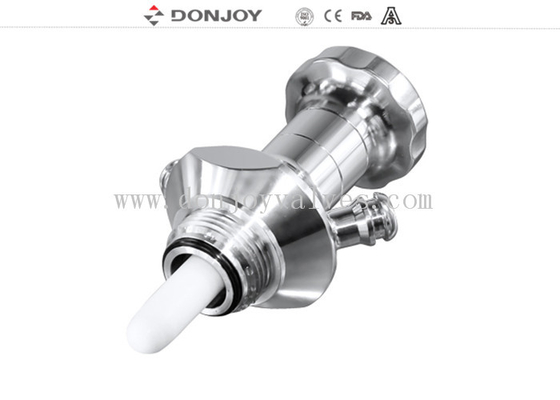

sanitary 316L aseptic sampling valves with pipeline connector
Specification
|
Product Name: |
sanitary 316L aseptic sampling valves with pipeline connector |
|
Material: |
AISI316L |
|
Size: |
1"-4" |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded, Flange |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Operating Pinciples
The aseptic sampling valve is designed for sterilization before and after each sampling.
Open :Sampling-the manual valve is opened by rotating the handle (adjustable value) or by activating the lever (on/off valve), the stem and the membrance are then retracted, allow liquid to pass.
Closed: Sterilizing-the built-in spring closes the valve and keeps the channel open between the hoses though reverse process in order to sterilize.If using by steam, a small pressure relief valve (optional) on the outlet is recommended.
Standard design: the aseptic sampling valve consists of three parts, a valve body, a handle and a membarnce, the rubber.
Handle:(1) Turning handle (2) removable key
Application: The aseptic sampling valva is applied to beer,milk, beverage, fruit juice, pharmacy industries .
Drawing
Relate products
Valve body with various configuarations
1. Flow regulating valve head
2.Pneumatic valve head
3.Auto reset valve head
4.Lock level valve head
Tag : Donjoy Valve, Sanitary valve, Sampling valve.
