| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.VJZ210Q2 |
| الـ MOQ: | Negotiation |
| تفاصيل التعبئة: | carton box |
| شروط الدفع: | T/T, LC, Credit Card |
4" Globe valve with Stainless steel actuator 10bar for water treatment
Detail:
Globe Valve
Connection: Clamped, Thread, Welding,Flange
Standard: DIN,3A,SMS,ISO,IDF, RJT..
Certificate: CE, 3A, FDA..
Operation Options for Globe Valve
1. Manual:Plastic handwheel, Stainless steel Wheel
2. Pnuematice:Plastic and stainless steel actuators, Diaphragm type actuator
3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor
specifications:
| Product Name: | 4" Globe valve with Stainless steel actuator 10bar for water treatment |
| Valve Body Material: | CF8M, SS316l |
| Seal Material: | EPDM |
| Working Pressure: | 8 Bar, 10Bar(option). |
| Max. Working Temperature: | 120 degree ,180Degree(Option) |
| Availably size: | 2.5"-6",DN65-DN150 |
| Availably connection: | Thread,Weld,Clamp,BSP/BSP/NPT |
| Operate: | Actuator |
| Certificate: | FDA,CE,ISO |
Applications:
Globe valve is a general switch in the automactic control system is widely used in wine, printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.
Drawing of valve
Different operation of the globe valve

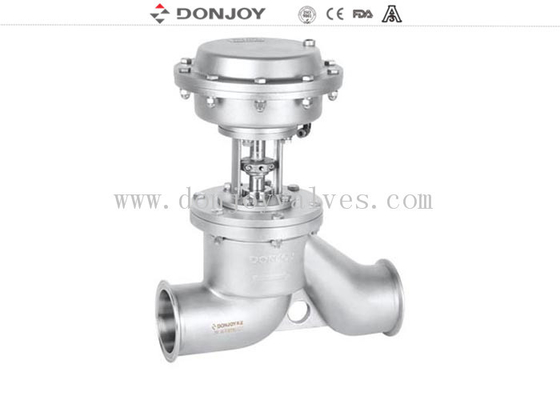

1. Pneumatic globe valve

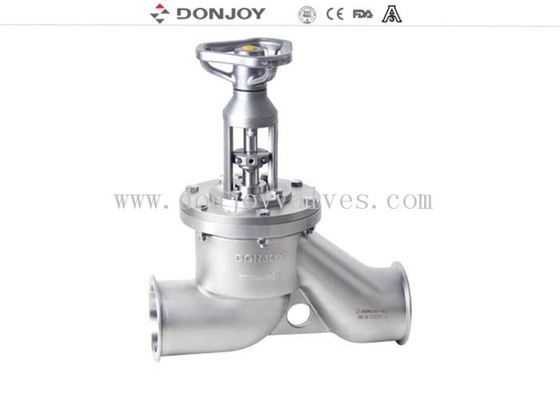

2.Manual globe valve
3. Pneuamtic globe valve+positioner
4.Stainless steel hand globe valve
5.Pneumatic globe valve+ Ctop
6.Stainless steel pneumatic globe valve
7.Pneuamtic globe valve+ valve position regulater
8. Pneumatic globe valve+psoitioenr sensor
Tag : Angle seat valve, Globe valve, Position Valve
