| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.VJZ240Q2 |
| الـ MOQ: | Negotiation |
| تفاصيل التعبئة: | carton box |
| شروط الدفع: | T/T, LC, Credit Card |

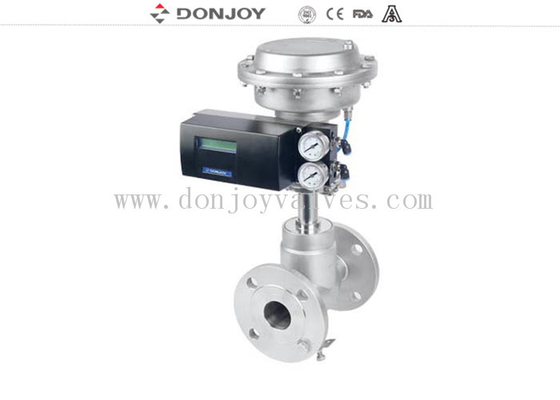

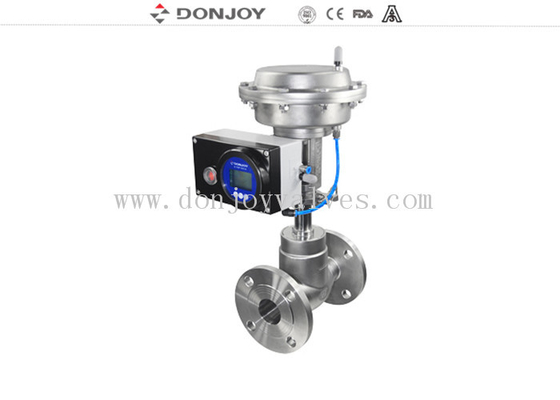

DN80 Regulating Globe valve with PN10 Flange connection
Detail:
Globe Valve
Connection: Clamped, Thread, Welding,Flange
Standard: DIN,3A,SMS,ISO,IDF, RJT..
Certificate: CE, 3A, FDA..
Operation Options for Globe Valve
1. Manual:Plastic handwheel, Stainless steel Wheel
2. Pnuematice:Plastic and stainless steel actuators, Diaphragm type actuator
3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor
specifications:
| Product Name: | 5" Globe valve with Stainless steel actuator with Explosion-proof positioner for mine |
| Valve Body Material: | CF8M, SS316l |
| Seal Material: | EPDM/PTFE |
| Working Pressure: | 8 Bar, 10Bar(option). |
| Max. Working Temperature: | 120 degree ,180Degree(Option) |
| Availably size: | 2.5"-6",DN65-DN150 |
| Availably connection: | Thread,Weld,Clamp,BSP/BSP/NPT |
| Operate: | Actuator |
| Certificate: | FDA,CE,ISO |
Applications:
Globe valve is a general switch in the automactic control system is widely used in wine, printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.
Working principle
A globe valve, different from ball valve, is a type of valve used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body.
Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. This has an opening that forms a seat onto which a movable plug can be screwed in to close (or shut) the valve. The plug is also called a disc or disk. In globe valves, the plug is connected to a stem which is operated by screw action using a handwheel in manual valves. Typically, automated globe valves use smooth stems rather than threaded and are opened and closed by an actuator assembly.
Drawing of valve
Different operation of the globe valve
1. Pneumatic globe valve
2.Manual globe valve
3. Pneuamtic globe valve+positioner
4.Stainless steel hand globe valve
5.Pneumatic globe valve+ Ctop
6.Stainless steel pneumatic globe valve
7.Pneuamtic globe valve+ valve position regulater
8. Pneumatic globe valve+psoitioenr sensor
Tag : Angle seat valve, Globe valve, Position Valve
