| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.VDF301Q1 |
| الـ MOQ: | Negotiation |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | carton box |
| شروط الدفع: | T/T, LC, Credit Card |

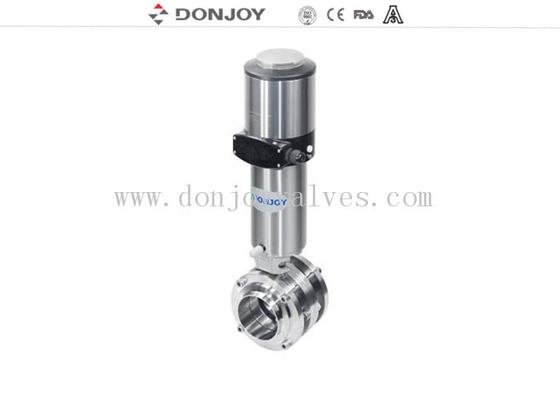

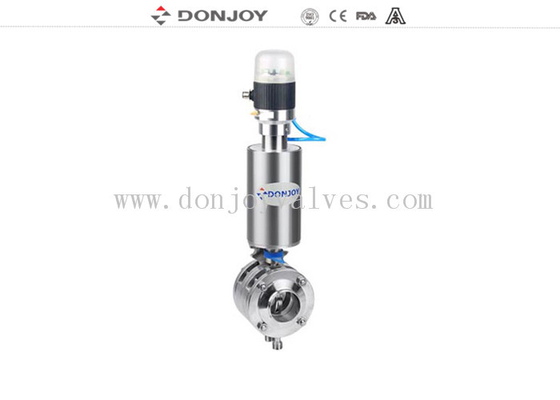

double seat butterfly valves sanitary pneumatic mixproof with positioner
Specifications
|
Product Name: |
double seat butterfly valves sanitary pneumatic mixproof with positioner |
|
Valve Body Material: |
SS304 / 316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
Max. working Pressure: |
10Bar |
|
Max. working temperature: |
130 degree C |
|
Available size: |
2''-4'', DN50-DN100 |
|
Available connection: |
Clamp/welding/thread/special connection |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Manual, Pneumatic, Electric |
|
Handle application: |
Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Using: |
Separating material in the storage tank |
|
Medium: |
Especially suitable for liquid and gaseous medium without suspended matter/particles |
Handle selection
Two-position handle;
three-position handle;
four-position pull handle;
multi-position plastic handle;
multi-position stainless steel handle;
Connection
Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
Drawing
Tag: Donjoy mixproof butterfly valves, Double seat butterfly valve , beverage butterfly valve
