| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.VDF401Q1 |
| الـ MOQ: | Negotiation |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | carton box |
| شروط الدفع: | T/T, LC, Credit Card |

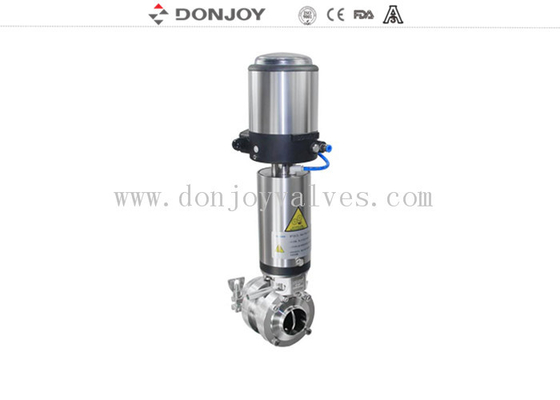

Pneumatic mixproof double seat butterfly valve with smart head C-TOP 1"-4"
Specifications
|
Product Name: |
Double seat butterfly valve |
|
Valve Body Material: |
SS304/316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
Max Working Pressure: |
10Bar |
|
Max.Working Temperature: |
130 degree C |
|
Available size: |
2''-4'', DN50-DN100 |
|
Available connection: |
Clamp/welding/thread/special connection |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Manual,Pneumatic, Electric |
|
Handle application: |
Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Function: |
Separating cleaning solution in CIP system |
|
Control box: |
C - TOP basic type, C - TOP + AS - I communication |
Application
Double seat butterfly valves can be used in food-processing, pharmacy and chemical industries.Leakage butterfly valve offers an easy and safe separation of products and prevents accidental mixing in case of gasket failure.The most usual applications are the ones that require safe separation of the product and CIP solutions in a single point (not in manifolds),or at the end of a manifold( for example CIP return) or entry of a CIP solution into a tank (through a spray ball) .
The mixproof butterfly valve as a process element for the separation of media is suitable for a variety of applications:
Handle selection
Two-position handle;
Three-position handle;
Four-position pull handle;
Multi-position plastic handle;
Multi-position stainless steel handle;
Connection
Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
