| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO. |
| الـ MOQ: | Negotiation |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | carton box |
| شروط الدفع: | T/T, LC, Credit Card |

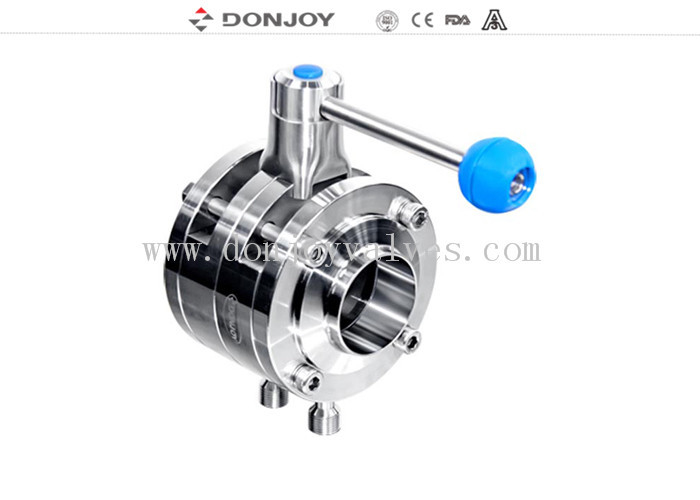

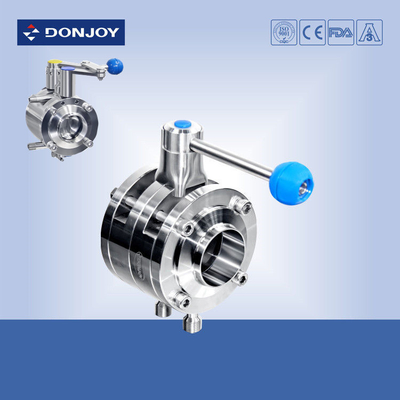

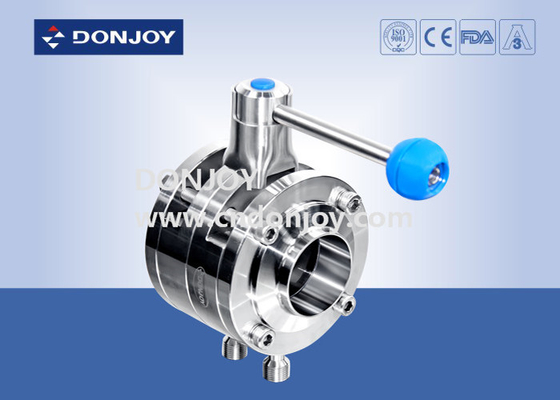

12'' Manual mixture proof butterfly valves Stainless steel 304 /316L with pull handle
Specifications
|
Product Name: |
Stainless steel 304 / 316L manual mixture proof butterfly valve with pull handle of sanitary grade |
|
Valve Body Material: |
SS304/316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
Max Working Pressure: |
10Bar |
|
Max.Working Temperature: |
120 degree C |
|
Available size: |
1.5-4', DN40-DN100 |
|
Available connection: |
Clamp/welding/thread/special connection |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Manual,Pneumatic, Electric |
|
Handle application: |
Two-position handle / three-position handle / four-position pull handle / multi-position plastic handle / multi-position stainless steel handle |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Structure of valve body: |
3pcs butterfly valve |
|
Grade of handle: |
3 - grade |
Handle selection
Two-position handle;
three-position handle;
four-position pull handle;
multi-position plastic handle;
multi-position stainless steel handle;
Connection
Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
Various kinds of manual butterfly valve
Woring Principle
Tag: Donjoy VDF3 , Mixproof butterfly valve, Double seat butterfly valve
