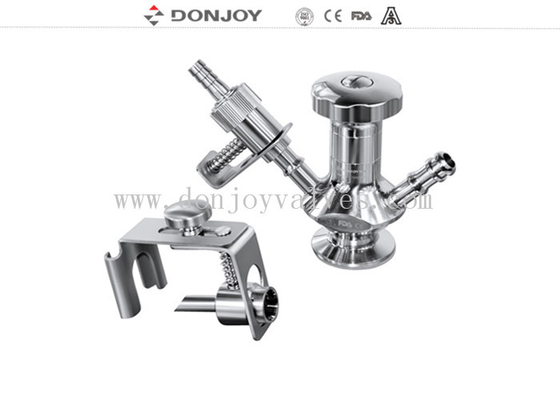

1" - 3'' Manual Aseptic sampling valve with pipeline connector
Quick Detail
Sampling Valve
Size:1-4"
Type: Pnuematic
Gasket: EPDM,PTFE
Working Pressure:6Bar
Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm
Handle: Turing handle, Removable handle
Specification
|
Product Name: |
Manual Aseptic sampling valve with pipeline connector, SS316L,1" to 3 inch |
|
Material: |
AISI304, AISI316L |
|
Size: |
1"-4" |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded, Flange |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Relate products
Operating Principles
The aseptic sampling valve is designed for sterilization before and after each sampling.
Open: Sampling- the manual valve is opened by rotating the handle( adjustable valve) or by activating the lever (on/off valve). The stem and the membrane are then retracted, allowing liquid to pass
Closed : Sterilizing- the build - in spring closes the valve and keeps the channel open between the hoses through reverse process in order to sterilize. If using by steam, a small pressure relief valve(optional) on the outlet is recommeded.
Standard Design : The aseptic sampling valve consists of three parts, a valve body, a handle and a menbrane. The rubber menbrane is placed on the stem of the valve and works as a stretchable plug.
Application : The aseptic sampling valve is applied to beer, milk, beverage, fruit juice, pharmacy industries,
