| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.VQD100Q2 |
| الـ MOQ: | Negotiation |
| السعر: | $100-$500/piece |
| تفاصيل التعبئة: | carton box |
| شروط الدفع: | T/T, LC, Credit Card |

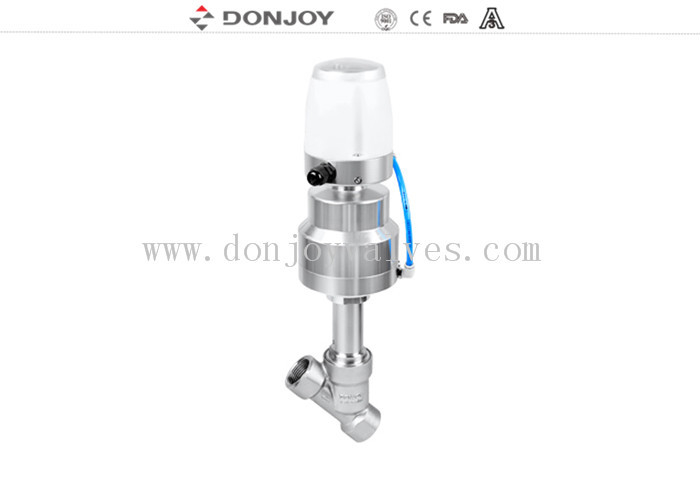

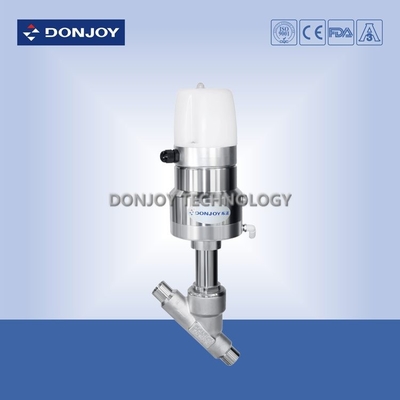

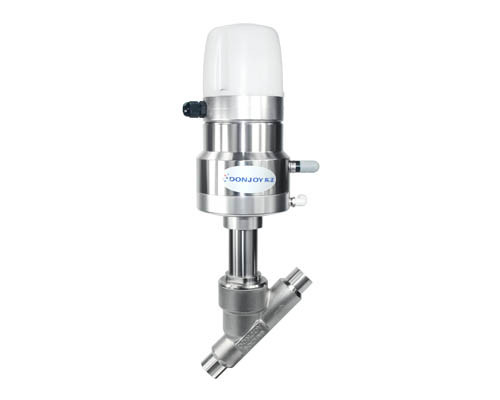

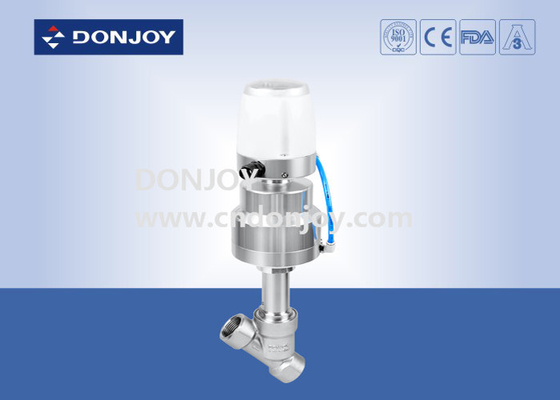

ss316L BSP Thread Pneumatic Angle Seat Valve with Mini- C-Top
specifications:
| Product Name: | SS316 1inch Stainless steel pneumatic Angle Seat Valve with mini- C-TOP ,Thread |
| Valve Body Material: | CF8M/316L |
| Seal Material: | EPDM/ PTFE |
| Working Pressure: | 8 Bar, 10Bar(option). |
| Max. Working Temperature: | 120 degree ,180Degree(Option) |
| Availably size: | DN10-DN100, 1/2"-4" |
| Availably connection: | Thread,Weld,Clamp,BSP/BSP/NPT |
| Operate: | Pneumatic ,Control Head |
| Certificate: | FDA,CE,ISO |
Description
A new generation of high purity design of the angle seat valve
1. No dead angle, no retention to meet the requirements of all kinds of health.
2. Advantages: The spool without bolt, without considering the risk of damaging other equipment because of bolt dropping;
3.The valve have no dead angle, no need to consider the resulting corner because of the complex structure.
4. Temperature: maximum temperature up to 200 (depending on the seal type)
5. Seal: elastic shaft seal design, embedded spool design.
Operation Options for Seat Valve
1. Manual:Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel
2. Pnuematice:Plastic and stainless steel actuators
3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor
Features(with mini-C-TOP control unit)
1. Position feedback,Can be viewed on(Green) and off(Red)
2. Built-in Solenoid valve
3. Press button design (convenient to calibrate)
4. Press with PLC system to automaticauy control
5. Power:DC 24V
Applications:
Angle seat valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.
Operationg Principles
1.Seat valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.
2.The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.
Tag : Donjoy sanitary valve, Angle seat valve , Steam Valve
