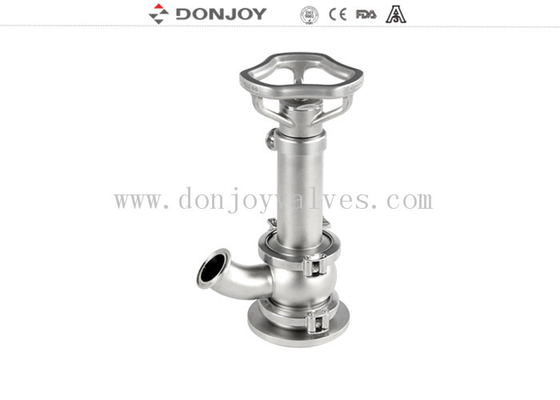

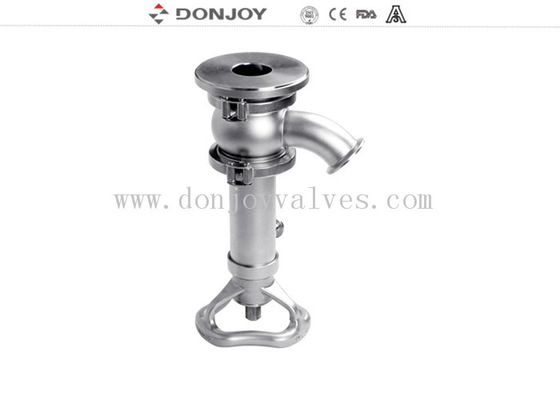

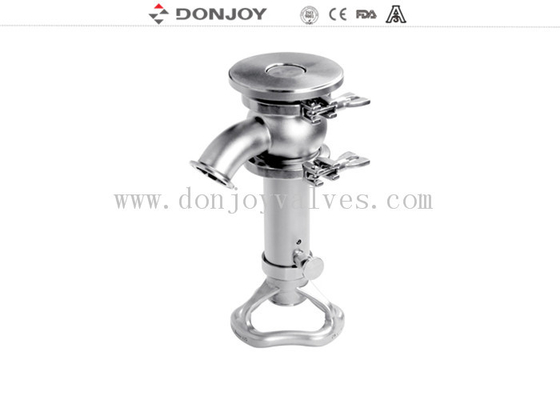

Donjoy Tank Bottom Valve with internal open elbow type
Description
1. Manual: handwheel
2. Open: internal open
3. Valve core: shrink type
4. Elbow type: 45° or 90°
5. Can be assembled with CIP
Specification
|
Product Name: |
304/316L handwheel internal open Tank Bottom Valve with Valve Core Shrink Type |
|
Valve Body Material: |
SS316L/SS304 |
|
Seal Material: |
NBR or EPDM or VITON |
|
Working Pressure: |
10 Bar / 145PSI |
|
Max.Working Temperature: |
-10℃to +120℃(EPDM) |
|
Available connection: |
DIN, Clamp, SMS, RJT, IDF...Flange |
|
Application scope: |
Dairy,food processing, beverage, pharmacy, cosmetic, etc |
|
Feature: |
Dead angle better |
|
Design: |
Dead conner minimized design |
Application
The tank bottom seat valve is a pneumatically operated single seat valve, assembled at the bottom of tank, used in dairy, food processing, beverage, pharmaceutical and fine chemical industries.
Operating Principle
1. Operated by Air / Spring, Air/Air
2.Compressedair push shaft to open and close valve
3. Valve structure: Valve seat opens construction inside so that it can avoid pushing when pipeline is over pressure.
Design and Features
1. 3A sanitary design
2.Complete discharge system avoids retention
3. Normally closed valve (Closed by spring)- standard version
4.Normally open valve ( Opened by spring) by a 180 degree rotating of the pneumatic actuator
5. The valve seat opens into the tank to avoid accidental openings
6. 360° adjustable body, even after welding the flange to the tank
7. Open lantern for visual inspection of the shaft sealing.
8. Easy disassembly by loosening the clamp
Product photo
Tags : Tank bottom valve, Sanitary valve, Control valve
