| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO.VKD310Q1 |
| الـ MOQ: | Negotiation |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | Carton, Wooden Case |
| شروط الدفع: | T/T,L/C, Credit Card |

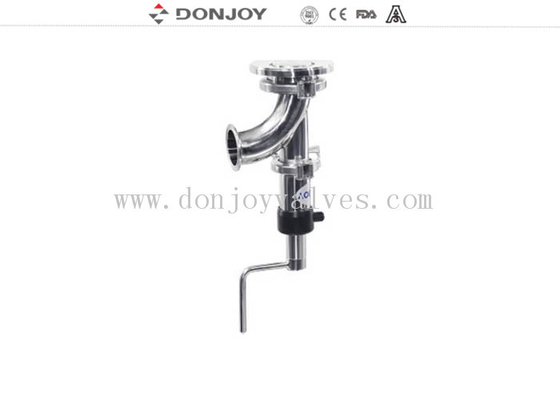

SS304 And SS316L Stainless Steel Sanitary Manual Tank Bottom Seat Valve 90 Elbow Type
Description
|
Product Name: |
Mixing-proof Tank Bottom Valve for preventing two medium from mixing |
|
Valve Body Material: |
SS316 |
|
Working Pressure: |
10 Bar / 145PSI |
|
Max.Working Temperature: |
-10℃to +120℃(EPDM) |
|
Available size: |
1.5"-4" DN40-DN100 |
|
Available connection: |
DIN, Clamp, SMS, RJT, IDF...Flange |
|
Operated: |
Air/Spring, Air / Air |
|
Application scope: |
Dairy,food processing, beverage, pharmacy, cosmetic, etc |
Design and features
1. 3A sanitary design
2. Complete discharge system avoids retention
3. Normally closed valve (closed by spring) -standard version
4. Normally open valve (opened by spring) by a 180 degree rotating of the pneumatic actuator
5. The valve seat opens into the tank to avoid accidental openings.
6. 360℃adjustable body, even after welding the flange to the tank
7. Open lantern for visual inspection of the shaft sealing
Operation principle
1. Operated by Air/Spring, Air / Air
2. Compressed air push shaft to open and close valve
3. Valve structure: Valve seat opens construction inside so that it can avoid pushing when pipeline is over pressure
4. Parts in contact with the products: AISI 316L,AISI 304
5. Other parts: AISI 304
6. Gaskets (standard): EPDM according to FDA 177.2600
7. Internal surface finish: Ra≤0.8μm
8. External surface finish: Mirror polish
Products drawings
Tag : Tank bottom valve, Sanitary valves, Donjoy Valves
