| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | NO. |
| الـ MOQ: | Negotiation |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | carton box |
| شروط الدفع: | T/T, LC, Credit Card |

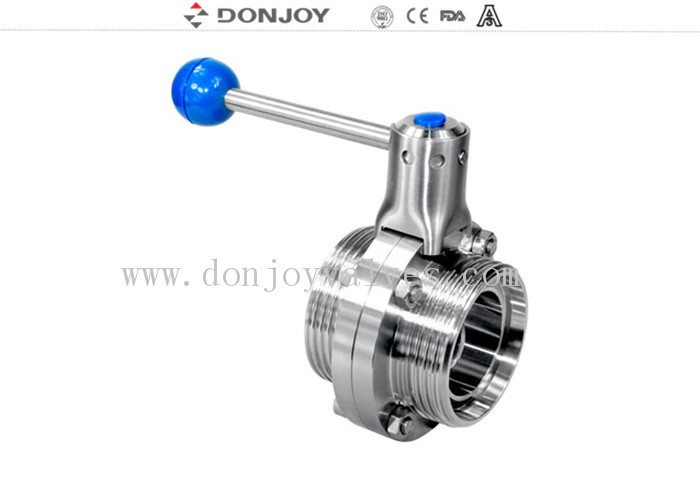

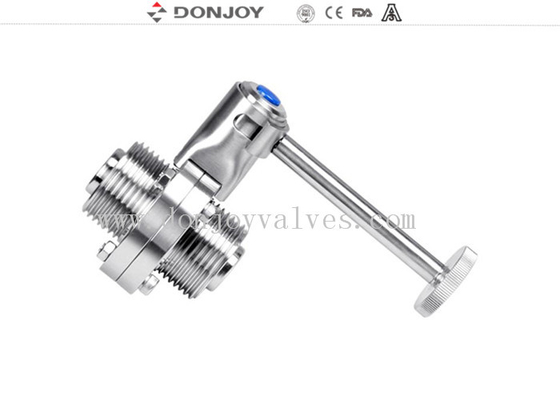

DIN / SMS / RJT Manual sanitary butterfly valve thread end SS304
Specifications
|
Product Name: |
DIN/SMS/RJT Manual Stainless Steel sanitary butterfly valve thread end SS304 |
|
Valve Body Material: |
SS304/316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
MaxWorking Pressure: |
10Bar |
|
Max.Working Temperature: |
130 degree C |
|
Availably size: |
DN10-DN300, 1/2"-12" |
|
Availably connection: |
Clamp/welding/thread/special connection |
|
Availably standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Manual,Pneumatic, Electric |
|
Handle application: |
Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Model of plastic multi - position handle: |
NO. VSB04 / NO.VSB06 / NO.VSB08 |
|
Installation of handle: |
On one side of valve |
Operating Torque(N.M)
|
DN25/1" |
DN40/1.5" |
DN50/2" |
2.5" |
DN65 |
3" |
DN80 |
DN100/4" |
DN125 |
DN150 |
|
3 |
4 |
5 |
10 |
12 |
14 |
18 |
25 |
40 |
55 |
