| اسم العلامة التجارية: | DONJOY |
| رقم الطراز: | 20 |
| الـ MOQ: | Negotiation |
| السعر: | US $333 - 777 / Piece |
| تفاصيل التعبئة: | carton box |
| شروط الدفع: | T/T, LC, Credit Card |

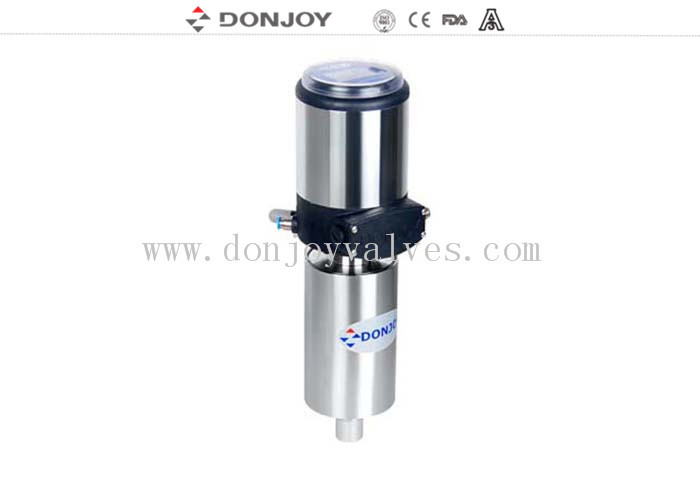

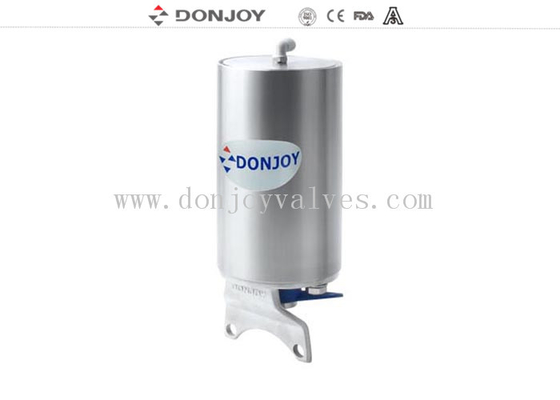

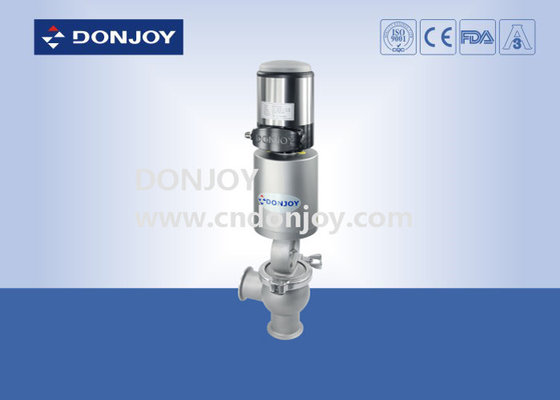

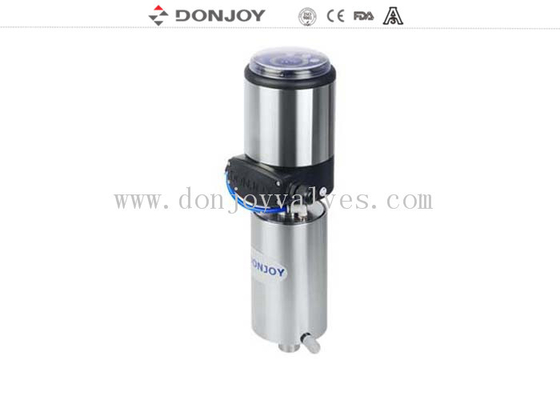

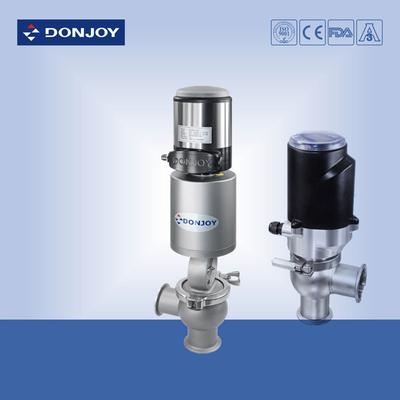

SS304 / SS316L stainless steel actuator With Intelligent Positioner for control Valve
Specification
|
Product Name: |
SS304 / SS316L intelligent electric control valve with intelligent positioner / controller |
|
Valve Body Material: |
SS304 / 316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
Available size: |
DN25 - DN100 or 1" - 4" |
|
Available connection: |
Clamp/welding/thread/special connection |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Electric power |
|
Structure |
With actuator |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Feature of actuator: |
LCD display -- Chinese and English menu |
|
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Material
The material connected with others: AISI 316L / 1.4404
The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
Pressure: 10bar
Certification
3A/54-02 (1580),
PED/97/23/EC,
FDA.177.2600, ISO
Packaging
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.
