| اسم العلامة التجارية: | Donjoy |
| رقم الطراز: | NO.MINI - ZZ - K |
| الـ MOQ: | Negotiation |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | carton box |
| شروط الدفع: | T/T, LC, Credit Card |

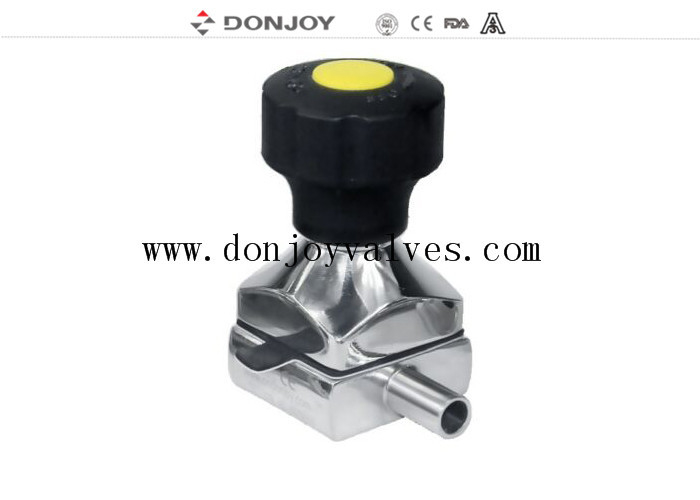

DN6 Direct way weld FDA Sanitary Diaphragm Valve with plastic handwheel
It is mainly used in liquid sampling, biological systems, laboratories and other projects
The valve is used in the pharmaceutical filling system with a particular advantage that opening and closing times can be up to 150 million life in 3 bar working pressure.
●Max Temperature: -20℃ to 150℃ (Depending on seal material)(Stainless steel actuator)
●Max Temperature: -20℃ to 130℃ (Depending on seal material)(Plastic actuator)
●Max Pressure: One way (DELTA P=100%)
EPDM8bar, PTFE 6 bar(Option)
EPDM6bar, PTFE 4.5 bar(Option)
Double action EPDM 8 bar,PTFE 6 bar
Specifications
|
Product Name: |
316L SS Mini Direct way Diaphragm Valve |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM |
|
MaxWorking Pressure: |
8 Bar |
|
Max.Working Temperature: |
150 degree C |
|
Availably size: |
1/4”-3/4”, DN6-DN15 |
|
Availably connection: |
Clamp/weld/thread/special connection |
|
Availably standard: |
3A/BPE/DIN/ISO/IDF |
|
Operated: |
Pneumatic,Manual |
|
Availably structure: |
Straight, tee, U-type, tank bottom |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Leading design: |
Dead conner ＜ 3D |
|
Various combinations: |
GMP and SAP structure |
Description
Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
2. Diaphragm valve with Control Unit(C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle

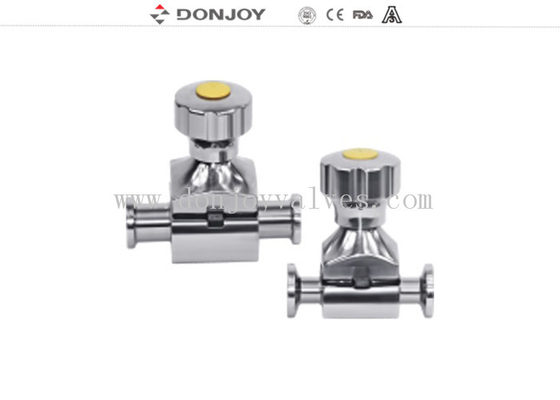

6. Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
9. Plastic Acutor
10. Body: Casting / Forging
Working principle
Mini - type diaphragm valve - with various combination
Tag : diaphragm pneumatic valve ,Hygienic diaphragm valve, Manual valve
